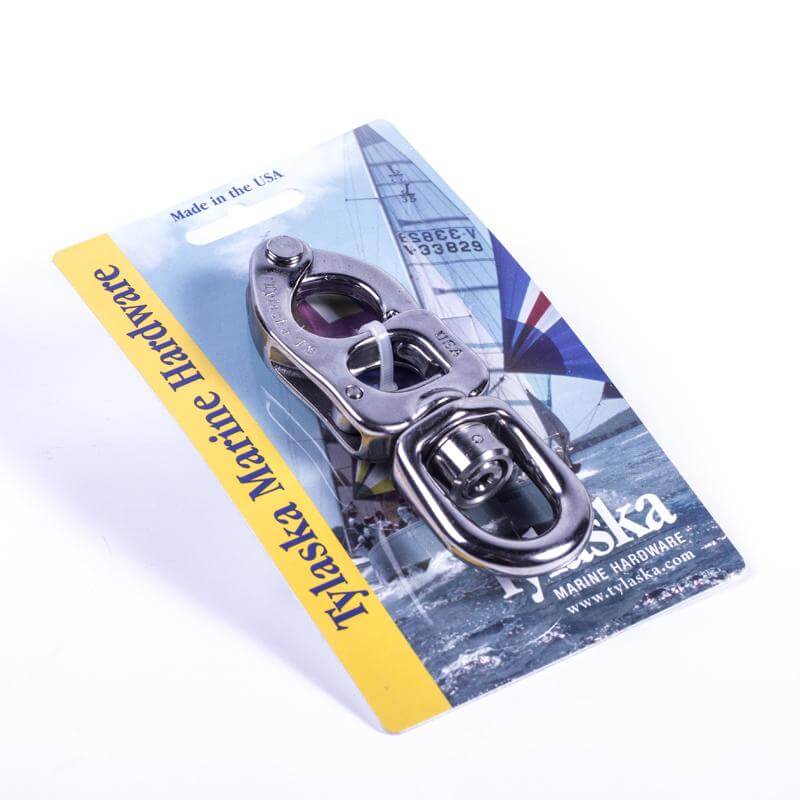

Specifications for Tylaska T8S standard bail snap shackle
| Boat | |
|---|---|
| Recommended Boat size - Max (ft) | 36 |
| Recommended Boat size - Min (ft) | 24 |
| Style | Swivel Bail (Small) |
| Load | |
| SWL (kg) | 1810 |
| NBL (kg) | 2270 |
| Dimensions | |
| A (mm) | 16 |
| B (mm) | 14.6 |
| C (mm) | 88.5 |
| Material | |
| Material | Stainless Steel |
| Material Grade | 17-4PH SS |
| Weight | |
| Weight (g) | 99 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Tylaska T8 Snap Shackles are perfect for applications requiring high strength and low weight. They have a SWL of 1,818kg and weigh only 97g in the standard bail configuration. Ideal for the 24 to 36 foot sailboat. Standard Bails provide ample room for attaching a line while keeping weight and overall shackle length to a minimum. Ideal for halyards and sheets.
