Specifications for Tylaska T8S standard bail snap shackle
| Taille bâteau recommandée - Max (ft) | 36 |
| Taille bâteau recommandée - Min (ft) | 24 |
| Style | Swivel Bail (Small) |
| Matériau | Acier inoxydable |
| Material Grade | 17-4PH SS |
| Charge de travail (kg) | 1810 |
| Charge de rupture (kg) | 2270 |
| A (mm) | 16 |
| B (mm) | 14.6 |
| C (mm) | 88.5 |
| Poids (g) | 99 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

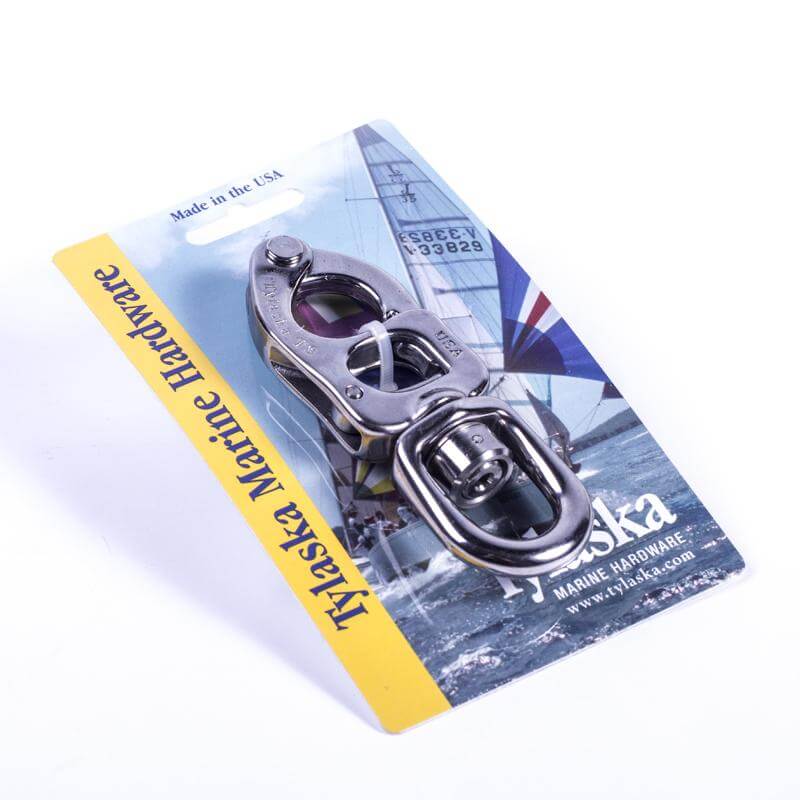

Tylaska T8 Snap Shackles are perfect for applications requiring high strength and low weight. They have a SWL of 1,818kg and weigh only 97g in the standard bail configuration. Ideal for the 24 to 36 foot sailboat. Standard Bails provide ample room for attaching a line while keeping weight and overall shackle length to a minimum. Ideal for halyards and sheets.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spécifications
| Taille bâteau recommandée - Max (ft) | 36 |
| Taille bâteau recommandée - Min (ft) | 24 |
| Style | Swivel Bail (Small) |
| Matériau | Acier inoxydable |
| Material Grade | 17-4PH SS |
| Charge de travail (kg) | 1810 |
| Charge de rupture (kg) | 2270 |
| A (mm) | 16 |
| B (mm) | 14.6 |
| C (mm) | 88.5 |
| Poids (g) | 99 |
