Ronstan Series 200 furler - Top swivel

https://www.upffront.com/web/image/product.template/12306/image_1920?unique=276154c

1.238,80 1238.8 USD 1.304,00

1.112,44 €

5% Descuento

No está disponible para venta

Días
:
Horas
:
Mins
:
Secs
  • Marca
  • Gama
  • SWL (kg)
  • NBL (kg)
  • A (mm)
  • B (mm)
  • C (mm)
  • D (mm)
  • E (mm)
  • F (mm)
  • G (mm)
  • H (mm)
  • Ø del pasador de horquilla (mm)
  • Ancho de horquilla (mm)
  • Peso (g)

Esta combinación no existe.

Product Image

Ronstan Series 200 furler - Top swivel

1.304,00 1.238,80
5% Off
SKU:
N/A
Marca: Ronstan
Shipping Info

Devolución de dinero en 30 días

 14-días para devoluciones

 Envío rápido disponible

Compartir :

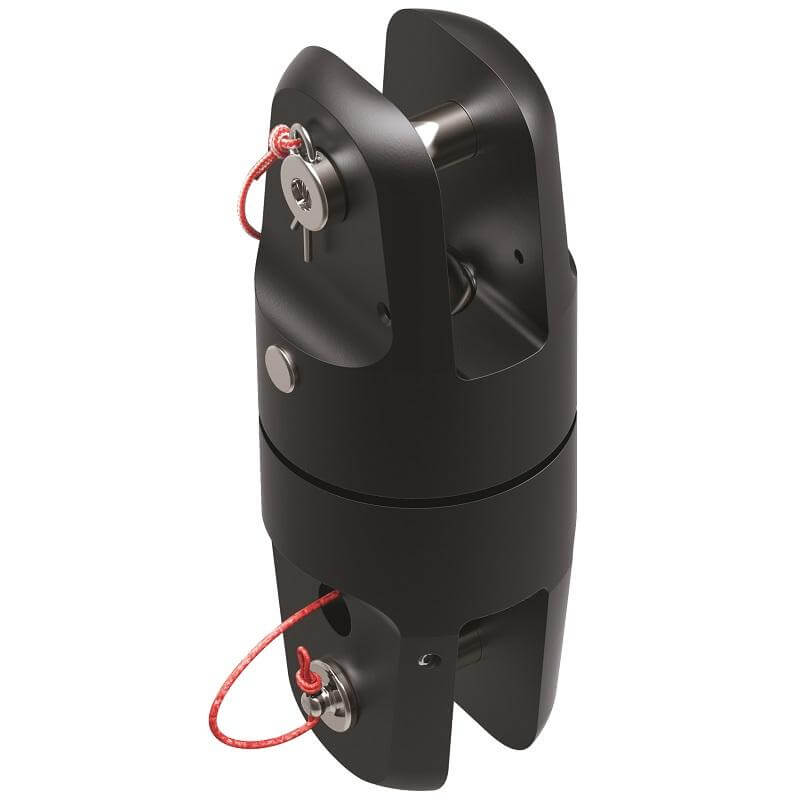

Ronstan's range of continuous line furling systems puts great performance and reliability within the reach of cruising and racing sailors alike. The top swivel is the upper half of the system and the fork is designed for use with Ronstan's dedicated torsion line thimble. Ronstan swivel bodies are made from hard anodised grade 6061 T6 aluminium for durability and corrosion protection. Grade 2205 stainless steel is used for the load bearing shaft for optimum strength to weight ratio. This swivel features a fork/fork configuration for direct halyard soft eye attachment, retained pins and a fast pin to facilitate easy changeover of sails sharing a common furler set. Specified weight excludes shackle. Designed to work with standard furler RS220000, it is rated to 10,000kg NBL.

Especificaciones

Boat
Load
SWL (kg) 5000
NBL (kg) 10000
Dimensions
A (mm) 128.5
B (mm) 170.5
C (mm) 22
D (mm) 12
E (mm) 28
F (mm) 20.1
G (mm) 11.9
H (mm) 64
Ø del pasador de horquilla (mm) 13
Ancho de horquilla (mm) 22
Weight
Peso (g) 784
