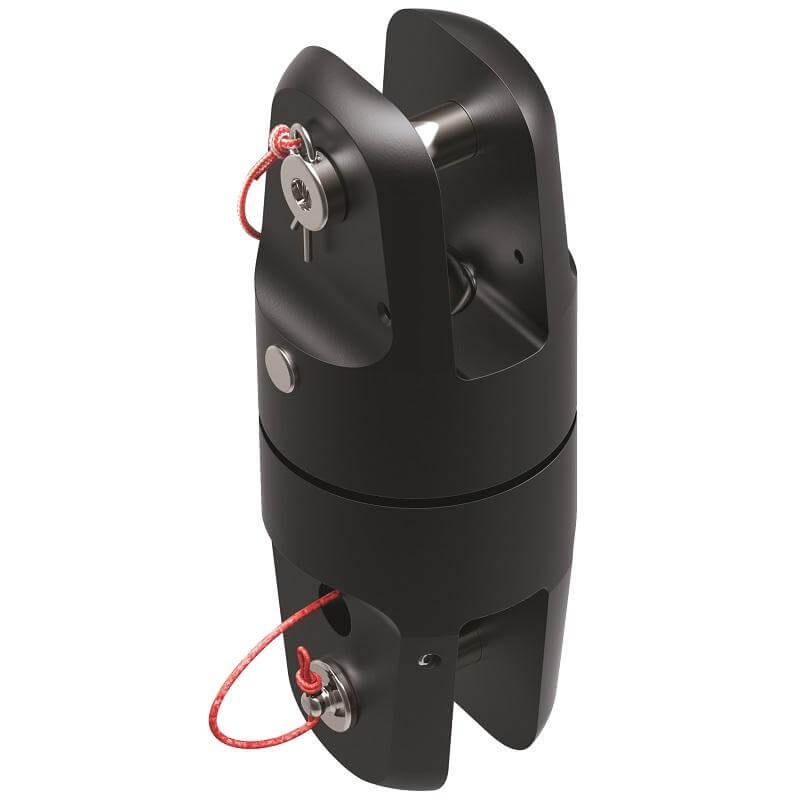

Ronstan Series 200 furler - Top swivel

1 303,67 1 238,49
5% Off
SKU:
N/A
Marque: Ronstan
Shipping Info

Garantie de remboursement de 30 jours

 Retours sous 14 jours

 Expédition express disponible

Partager :

Ronstan's range of continuous line furling systems puts great performance and reliability within the reach of cruising and racing sailors alike. The top swivel is the upper half of the system and the fork is designed for use with Ronstan's dedicated torsion line thimble. Ronstan swivel bodies are made from hard anodised grade 6061 T6 aluminium for durability and corrosion protection. Grade 2205 stainless steel is used for the load bearing shaft for optimum strength to weight ratio. This swivel features a fork/fork configuration for direct halyard soft eye attachment, retained pins and a fast pin to facilitate easy changeover of sails sharing a common furler set. Specified weight excludes shackle. Designed to work with standard furler RS220000, it is rated to 10,000kg NBL.

Spécifications

Boat
Load
Charge de travail (kg) 5000
Charge de rupture (kg) 10000
Dimensions
A (mm) 128,5
B (mm) 170,5
C (mm) 22
D (mm) 12
E (mm) 28
F (mm) 20,1
G (mm) 11,9
H (mm) 64
Ø axe de la chape (mm) 13
Largeur de chape (mm) 22
Weight
Poids (g) 784
