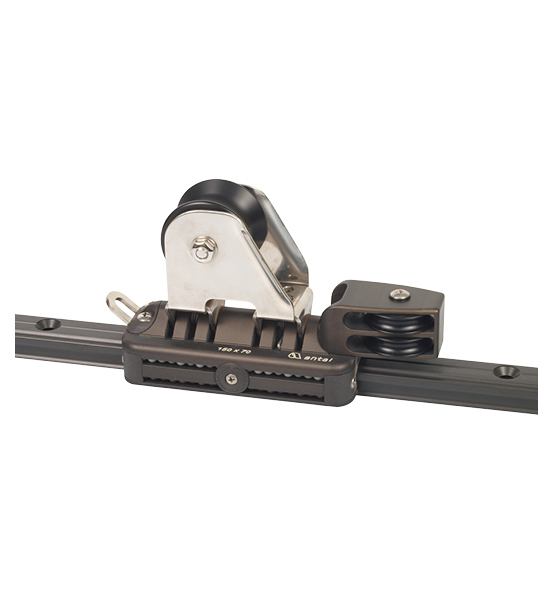

Antal 4Race 150 Genoa Car – 31×21, 4:1 Control
The Antal 4Race 150 Genoa Car – 4:1 Control is built for yachts using the 31×21 mm 4Race track (Antal ref: 4510), offering high mechanical advantage for precise trimming of genoa lead positions. Strong, smooth-running, and reliable, it is ideal for yachts carrying larger headsails where efficient adjustment under load is essential.
Constructed from hard black anodised aluminium with stainless steel side plates, the car runs on four rows of Torlon® and Delrin® ball bearings, ensuring consistent low-friction movement. With a Safe Working Load (SWL) of 1400 kg, it is engineered for higher sheet loads typical of yachts in this size range.
This version is configured for a 4:1 control system. It features a becket at one end for dead-ending the control line, and a double 45 mm control sheave at the other end for efficient purchase layout. The genoa sheet is handled through a large 60 mm lead sheave, providing smooth and reliable sail trim even under maximum load.
Key Features:
- Designed for yachts using the 31×21 mm 4Race track (ref: 4510)
- SWL 1400 kg for demanding applications
- Four rows of Torlon® and Delrin® ball bearings for smooth, low-friction travel
- 4:1 control system with becket and double 45 mm control sheave
- 60 mm main sheet sheave for efficient genoa lead handling
- Hard anodised aluminium body with stainless steel side plates
- Fully serviceable design for long-term durability
The Antal 4Race 150 Genoa Car – 31×21, 4:1 Control offers maximum mechanical advantage in the 150 range, making fine lead adjustments easy and precise, even under heavy genoa sheet loads.
Especificaciones
| Boat |
|---|
| Load | |
|---|---|
| SWL (kg) | 1400 |
| Dimensions | |
|---|---|
| Longitud (mm) | 150 |
| Altura de entrada del cabo (mm) | 70 |
| Ø de roldana (mm) | 60 |
| Longitud total (mm) | 200 |
| Ancho (mm) | 70 |
