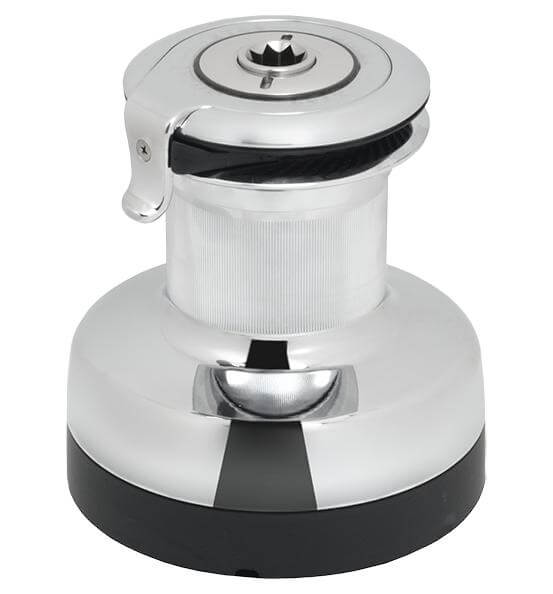

Specifications for Antal 44 2-Speed Self-Tailing Chromed Bronze Winch
| Ropes | |
|---|---|
| Cabo recomendado - Ø máx (mm) | 14 |
| Cabo recomendado - Ø mín (mm) | 8 |
| Boat | |
| Estilo | Self-Tailing |
| Dimensions | |
| Ø de base (mm) | 173 |
| Ø del tambor (mm) | 93 |
| Altura (mm) | 185 |
| Winches | |
| Relación de engranajes 1 (X : 1) | 3.7 |
| Relación de engranajes 2 (X : 1) | 8 |
| Velocidades (manual) | 2-Speed |
| Recogida de cabo por vuelta - 1ª velocidad (mm) | 80 |
| Recogida de cabo por vuelta - 2ª velocidad (mm) | 38 |
| Relación de potencia 1 (X : 1) | 20 |
| Relación de potencia 2 (X : 1) | 43 |
| Material | |
| Material | Chromed Bronze |
| Undefined | |
| Tamaño | 44 |
| Weight | |
| Peso (g) | 8700 |
| Garantía (años) | 3 |
Two Reduced Speed Winch
Quick and powerful operation is obtainable with the first reduced speed, then with increasing load, simply wind in the opposite direction the second gear and maximum power is automatically selected.
CHROME (CH): the drum, ST disks and ST arm are entirely chrome-plated. All chromed parts are highly polished, thickly nickel-plated and finally finished in chrome.
NEW SELF-TAILING XT SYSTEM: fixed upper disk with built in ST arm and self-regulating lower disk on springs. The new self-tailing adapts automatically to a wide range of rope diameters and, if overloading occurs, releases the line to avoid excess force on the ST arm.
Especificaciones
| Ropes | |
|---|---|
| Cabo recomendado - Ø máx (mm) | 14 |
| Cabo recomendado - Ø mín (mm) | 8 |
| Boat | |
|---|---|
| Estilo | Self-Tailing |
| Dimensions | |
|---|---|
| Ø de base (mm) | 173 |
| Ø del tambor (mm) | 93 |
| Altura (mm) | 185 |
| Winches | |
|---|---|
| Relación de engranajes 1 (X : 1) | 3.7 |
| Relación de engranajes 2 (X : 1) | 8 |
| Velocidades (manual) | 2-Speed |
| Recogida de cabo por vuelta - 1ª velocidad (mm) | 80 |
| Recogida de cabo por vuelta - 2ª velocidad (mm) | 38 |
| Relación de potencia 1 (X : 1) | 20 |
| Relación de potencia 2 (X : 1) | 43 |
| Material | |
|---|---|
| Material | Chromed Bronze |
| Undefined | |
|---|---|
| Tamaño | 44 |
| Weight | |
|---|---|
| Peso (g) | 8700 |
| Garantía (años) | 3 |
