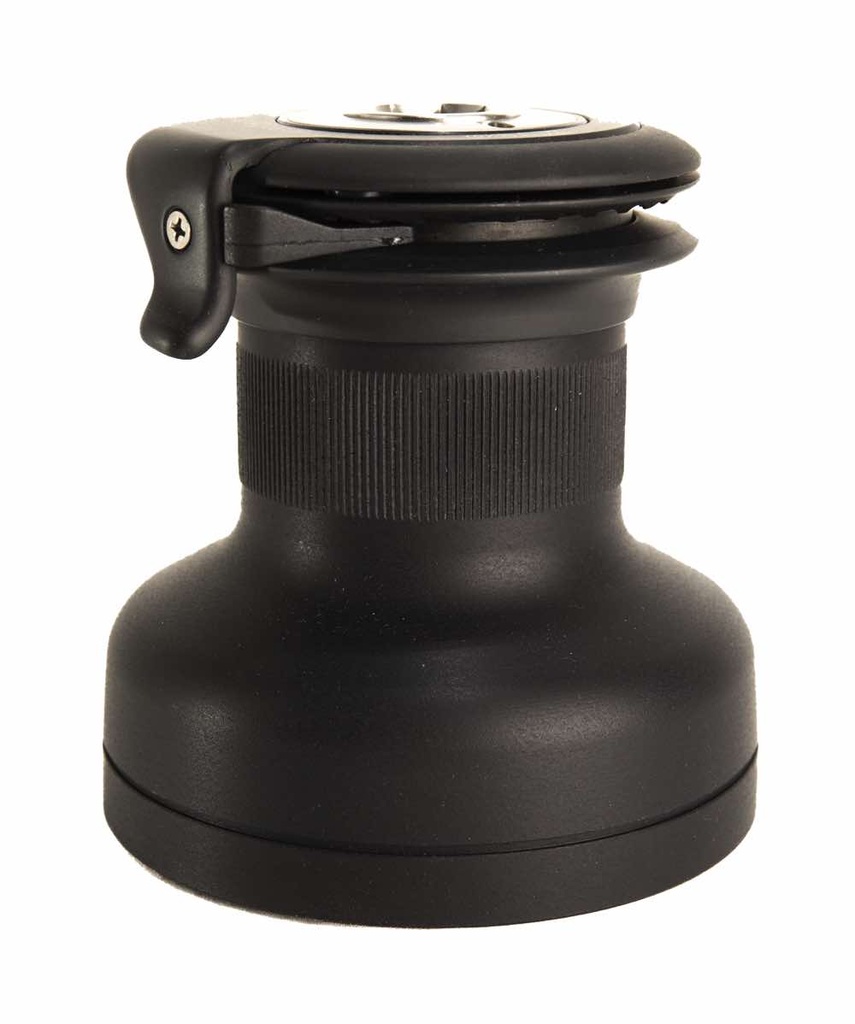

Specifications for Antal 30 1-Speed Self-Tailing Aluminium Race Winch
| Ropes | |
|---|---|
| Cabo recomendado - Ø máx (mm) | 10 |
| Cabo recomendado - Ø mín (mm) | 6 |
| Boat | |
| Estilo | Self-Tailing |
| Dimensions | |
| Ø de base (mm) | 128 |
| Ø del tambor (mm) | 73 |
| Altura (mm) | 135 |
| Winches | |
| Relación de engranajes 1 (X : 1) | 4.1 |
| Velocidades (manual) | 1-Speed |
| Recogida de cabo por vuelta - 1ª velocidad (mm) | 58 |
| Relación de potencia 1 (X : 1) | 28 |
| Material | |
| Material | Aluminium |
| Undefined | |
| Tamaño | 30 |
| Weight | |
| Peso (g) | 2350 |
| Garantía (años) | 3 |
|
Antal Winch Selection Guide.pdf
|
|
|
|
Antal_XT30 R_Exploded view.pdf
Exploded View of Antal Winch XT30_R
|
|
|
|
Antal_Installation_and_Maintenance_Manual_XT16_XT30_635809423809607370.pdf
|
|
|
|
Antal_Winches_Catalogue.pdf
|
|
|
|
WP - Winch selection guide.pdf
|
One Reduced Speed Winch
The two smallest models (XT16 and XT30) have a single reduced speed, giving a slow but powerful gear. The handle turns freely the other way.
HARD BLACK ALUMINIUM (AL): the aluminium drum is hard black anodized and teflon coated, scratch-proof and very hard-wearing, with a differentiated grip (aluminium drums only): minimum friction on the lower part where loads are higher and maximum at the top where loads are minimal: the result is an even grip along the entire drum.
NEW SELF-TAILING XT SYSTEM: fixed upper disk with built in ST arm and self-regulating lower disk on springs. The new self-tailing adapts automatically to a wide range of rope diameters and, if overloading occurs, releases the line to avoid excess force on the ST arm.
XT RACE SERIES: The racing winch series is modelled on the XT winch series, but also includes aluminium stem, peek roller bearings for the drum and the main shaft and lightened gears and main shaft.
Especificaciones
| Ropes | |
|---|---|
| Cabo recomendado - Ø máx (mm) | 10 |
| Cabo recomendado - Ø mín (mm) | 6 |
| Boat | |
|---|---|
| Estilo | Self-Tailing |
| Dimensions | |
|---|---|
| Ø de base (mm) | 128 |
| Ø del tambor (mm) | 73 |
| Altura (mm) | 135 |
| Winches | |
|---|---|
| Relación de engranajes 1 (X : 1) | 4.1 |
| Velocidades (manual) | 1-Speed |
| Recogida de cabo por vuelta - 1ª velocidad (mm) | 58 |
| Relación de potencia 1 (X : 1) | 28 |
| Material | |
|---|---|
| Material | Aluminium |
| Undefined | |
|---|---|
| Tamaño | 30 |
| Weight | |
|---|---|
| Peso (g) | 2350 |
| Garantía (años) | 3 |
