Specifications for Antal U-Bolt - 5mm
| Length (mm) | 50 |
| Style | Fixed |
| Material | Stainless Steel |
| Material Grade | AISI 316 |
| SWL (kg) | 500 |
| D (mm) | 38 |
| d (mm) | 5 |
| Weight (g) | 50 |

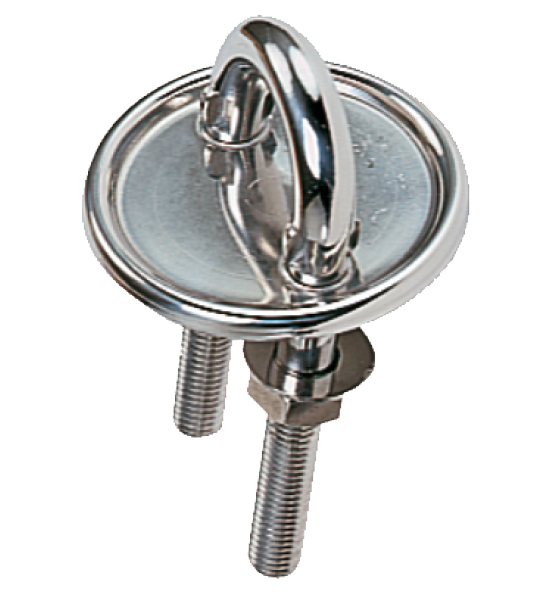

Antal U-Bolt – 5mm
The Antal U-Bolt – 5mm is a simple, cost-effective deck fitting designed for light-duty attachment points on smaller boats. Manufactured from 316 stainless steel, it provides corrosion resistance and long-term durability in the marine environment. With a Safe Working Load (SWL) of 500 kg, it is suited to securing control lines, lashings, or small blocks where loads are modest.
Unlike Antal’s Standard Padeyes, which from 8mm upwards use four fixing bolts to distribute higher loads, U-Bolts are secured with only two fixing points. This makes them lighter and more economical but less effective at spreading load into the deck structure. Where deck space and budget are critical, they provide a practical solution, but for higher load applications a Standard Padeye is the preferred option.
Features:
- 5mm gauge U-Bolt, SWL 500 kg
- Marine-grade 316 stainless steel
- Two-bolt fixing design for simple installation
- Corrosion-resistant and maintenance-free
- Lightweight, cost-effective attachment solution
Applications:
- Small block, lashing, or tie-down points
- Light-duty control line attachments on dinghies and small yachts
- Recommended only for lower-load scenarios; Standard Padeyes are stronger alternatives
Specifications
| Length (mm) | 50 |
| Style | Fixed |
| Material | Stainless Steel |
| Material Grade | AISI 316 |
| SWL (kg) | 500 |
| D (mm) | 38 |
| d (mm) | 5 |
| Weight (g) | 50 |
