Specifications for Antal Soft Attach Pad Eye for 14mm Line
| Width (mm) | 97 |
| Fixing hole Ø (mm) | 12 |
| Number of fixing holes | 4 |
| Length (mm) | 123 |
| Recommended line - Max Ø (mm) | 14 |
| Style | Fixed |
| Material | Aluminium |
| Height (mm) | 46 |
| SWL (kg) | 6800 |
| D (mm) | 21 |
| Weight (g) | 520 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

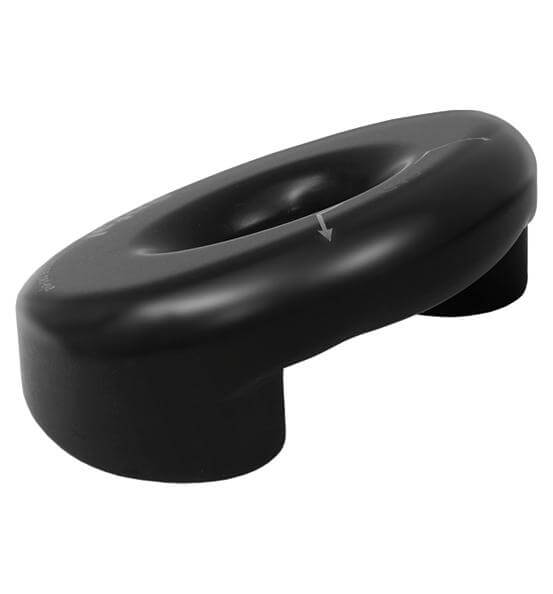

Antal Soft Attach Pad Eye for 14mm Line
The Antal Soft Attach Pad Eye for 14mm Line is the largest in the range, designed for extreme load applications with a Safe Working Load (SWL) of 6,800 kg. It provides a secure and lightweight attachment point for textile lashings, strops, and loops on high-performance or large cruising yachts.
Constructed from hard anodised aluminium, the pad eye is highly durable and corrosion-resistant. Smooth, rounded edges protect rope fibres, while the recessed central groove ensures lashings remain correctly seated under maximum load.
Available in two fixing types:
- Screw/Bolt Fixing – using countersunk fasteners visible from the top.
- Stud Fixing – with threaded studs integrated into the base and secured from below, creating a flush, snag-free top profile.
Features:
- Designed for 14mm lines
- Safe Working Load (SWL): 6,800 kg
- Lightweight, hard anodised aluminium construction
- Smooth edges and wide groove prevent rope chafe
- Two installation variants: screw/bolt or integrated studs
- Corrosion-resistant and maintenance-free
Applications:
- Extreme-load attachment points for blocks and control systems
- Suitable for deck, mast, and boom installations on large yachts
- A strong, low-profile alternative to stainless pad eyes for textile rigging
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Width (mm) | 97 |
| Fixing hole Ø (mm) | 12 |
| Number of fixing holes | 4 |
| Length (mm) | 123 |
| Recommended line - Max Ø (mm) | 14 |
| Style | Fixed |
| Material | Aluminium |
| Height (mm) | 46 |
| SWL (kg) | 6800 |
| D (mm) | 21 |
| Weight (g) | 520 |
