Specifications for Antal Roller Cleat 420
| Colour* | Black or Silver |
| LS1 | 370 |
| LS2 | 84 |
| WS1 | 36 |
| Total width (mm) | 76 |
| Total height (mm) | 77 |
| Recommended Boat size - Max (ft) | 70 |
| Total length (mm) | 418 |
| Material | Aluminium |
| SWL (kg) | 11500 |
| D (mm) | 36 |
| Weight (g) | 2300 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

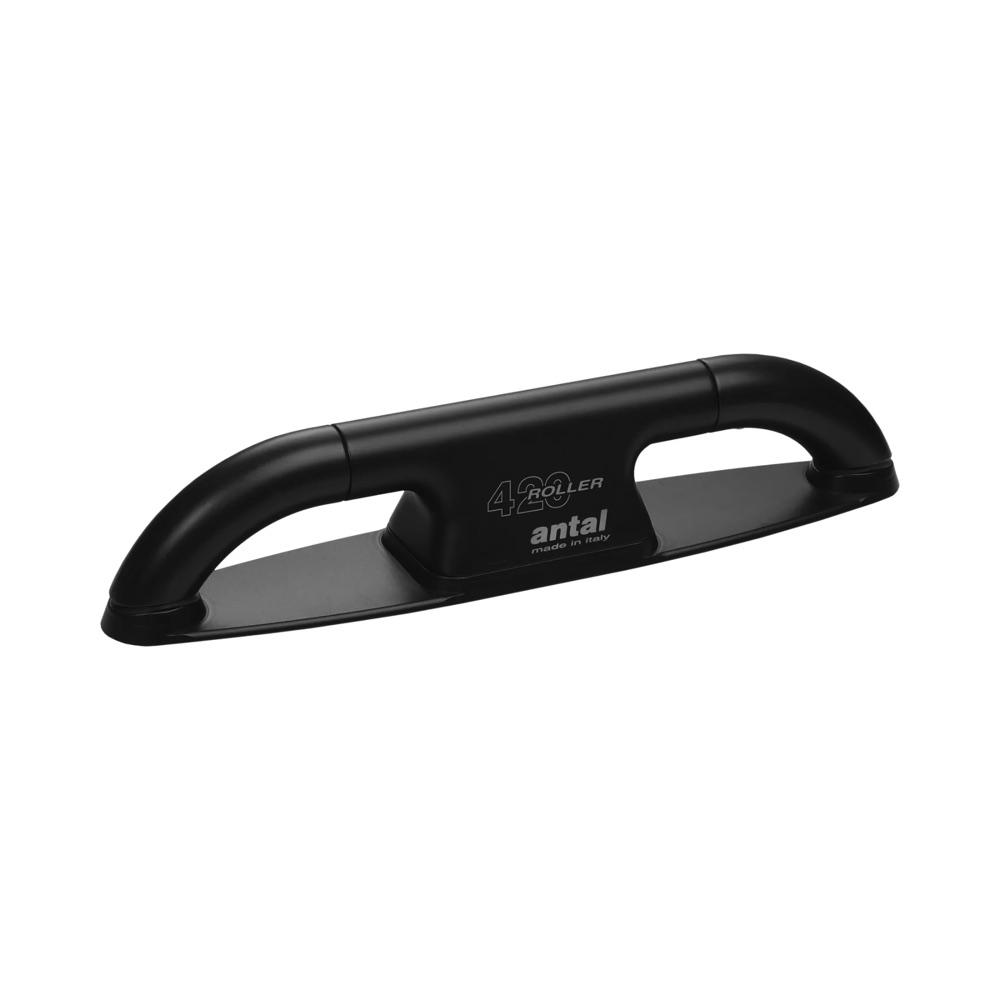

Antal Roller Cleat 420
The Antal Roller Cleat 420 is the largest in the Roller Cleat range, engineered for the most demanding mooring applications on big yachts. With rotating horns that can be operated even under full load, it combines exceptional strength with the sleek, fold-flat aesthetic that defines the Roller Cleat family.
Once closed, the cleat leaves the deck uncluttered and snag-free, ideal for modern yacht layouts where safety and design are prioritised. Its anodised aluminium body is robust, corrosion-resistant, and shaped to prevent line chafe, ensuring reliable long-term performance.
Specifications:
- Length: 420 mm
- Safe Working Load (SWL): 11,500 kg
- Finishes: Silver anodised or Black anodised aluminium
Applications:
- Maxi yachts and superyachts with demanding mooring needs
- Clean-deck designs requiring flush, foldable fittings
- The premium choice for strength, safety, and aesthetics
