Specifications for Antal Roller Cleat 290
| Colour* | Black or Silver |
| LS1 | 252.5 |
| LS2 | 56 |
| Total width (mm) | 55 |
| Total height (mm) | 56 |
| Recommended Boat size - Max (ft) | 46 |
| Total length (mm) | 287 |
| Material | Aluminium |
| SWL (kg) | 4000 |
| D (mm) | 28 |
| Weight (g) | 770 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

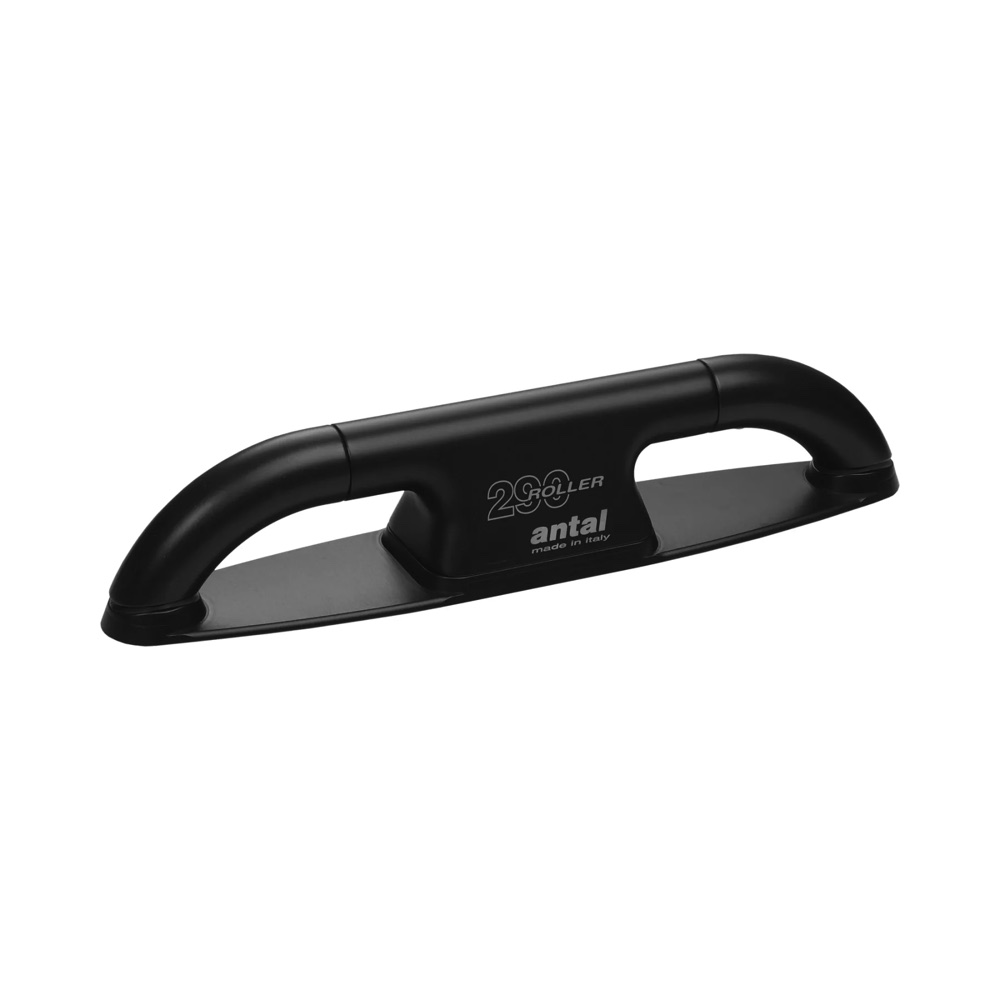

Antal Roller Cleat 290
The Antal Roller Cleat 290 offers the same folding cleat concept as the 230, scaled up for higher loads and larger yachts. Its rotating horns allow the cleat to be opened or closed even with mooring lines tensioned, making it practical and safe during docking manoeuvres.
When closed, it maintains a compact, snag-free profile, helping to keep decks clean and clear. Built from anodised aluminium, it is both lightweight and robust, with carefully rounded edges to protect lines.
Specifications:
- Length: 290 mm
- Safe Working Load (SWL): 4,000 kg
- Finishes: Silver anodised or Black anodised aluminium
Applications:
- Medium-to-large yachts requiring secure mooring solutions
- Where clean aesthetics and snag-free deck hardware are a priority
- Stylish, modern alternative to standard cleats
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Colour* | Black or Silver |
| LS1 | 252.5 |
| LS2 | 56 |
| Total width (mm) | 55 |
| Total height (mm) | 56 |
| Recommended Boat size - Max (ft) | 46 |
| Total length (mm) | 287 |
| Material | Aluminium |
| SWL (kg) | 4000 |
| D (mm) | 28 |
| Weight (g) | 770 |
