Specifications for Antal Plus Clutch Vgrip 16
| Width (mm) | 41 |
| Fixing hole Ø (mm) | 10 |
| Length (mm) | 192 |
| Recommended line - Max Ø (mm) | 16 |
| Recommended line - Min Ø (mm) | 14 |
| Height (mm) | 93 |
| SWL (kg) | 2100 |
| A (mm) | 46 |
| B (mm) | 128 |
| C (mm) | 18 |
| Weight (g) | 1100 |
| Type | Single |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

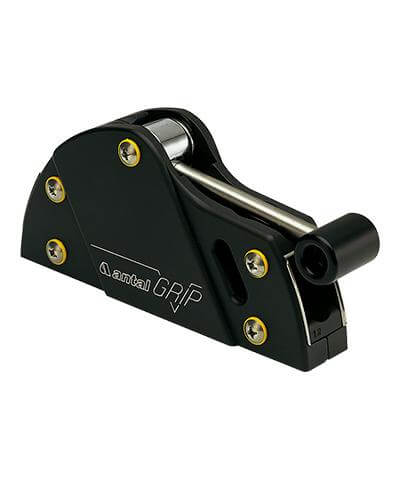

The Antal Plus Clutch Vgrip 16 is a versatile line control system for 16mm diameter control lines on sailboats. The V-Grip system offers strong holding power and reduced line damage, while the single clutch design and compact size make it a practical choice for various control line applications on your sailboat.
