Antal Outhaul Slider 200 – T Track 40×8
The Antal Outhaul Slider 200 is the largest of the T-track outhaul sliders, designed for yachts from 48–60 ft where mainsail clew loads are at their highest. Running on the 40×8 mm T Track (Antal ref: 602.213), it provides maximum strength and reliability in a straightforward, plain-bearing configuration.

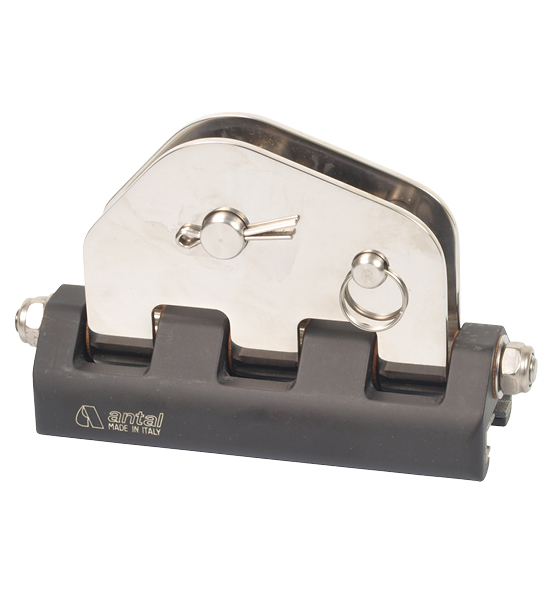

At 200 mm long, the slider body offers a wide, stable footprint to distribute loads effectively along the track. The construction combines a hard anodised aluminium body with stainless steel side plates, which carry two heavy-duty pins: one to secure the mainsail clew and another to anchor the outhaul line. This twin-pin arrangement ensures a compact and efficient outhaul system that can withstand extreme working loads.
With a Safe Working Load (SWL) of 8000 kg, the Outhaul Slider 200 delivers exceptional load capacity, making it ideally suited to large yachts operating with high mainsail tensions. Despite its strength, the plain-bearing design remains simple and low-maintenance, offering long-term dependability without the complexity of ball-bearing systems.
The slider is designed to run on the 40×8 mm T Track (ref: 602.213) in combination with end stops ref: 691.341/B, ensuring a secure and reliable system setup.
Key Features:
- Suitable for yachts from 48–60 ft
- SWL 8000 kg for maximum load applications
- Runs on 40×8 mm T Track (ref: 602.213) with end stops ref: 691.341/B
- 200 mm long slider body for strength and stability
- Two stainless steel pins: forward pin for the clew, aft pin for the outhaul termination
- Hard anodised aluminium body with stainless steel side plates
- Plain-bearing design for simplicity and reliability
The Antal Outhaul Slider 200 – T Track 40×8 is the ultimate plain-bearing outhaul solution, combining extreme load capacity with straightforward, maintenance-free reliability for large yacht mainsail systems.
Specifications
| Width (mm) | 60 |
| Length (mm) | 200 |
| Recommended Boat size - Max (ft) | 60 |
| Recommended Boat size - Min (ft) | 48 |
| SWL (kg) | 8000 |
| Weight (g) | 1680 |
