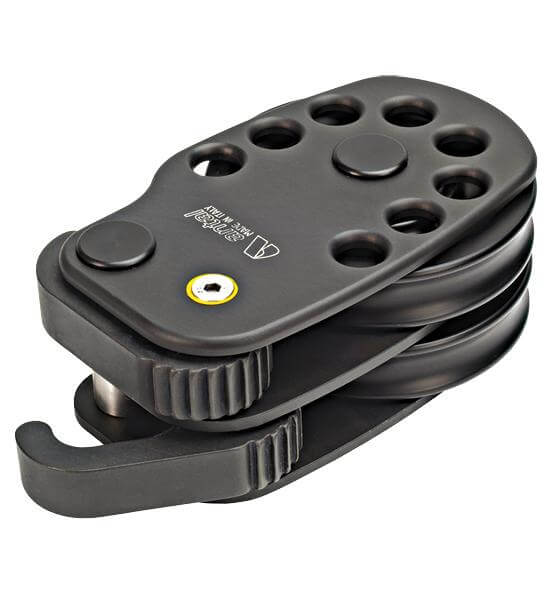

Antal Double Stopper Deck Block Ø65
Compact and versatile, the Antal Double Stopper Deck Block Ø65 combines two foot blocks with integrated jammers so you can divert and temporarily hold two lines before they reach the winch. Ideal for smaller yachts and control-line layouts, it frees up winches quickly while keeping side decks clean and safe.
Each 65 mm sheave is moulded from high-strength resin and runs on composite fibre bushes with side ball bearings for smooth, low-friction operation. Hard anodised aluminium side plates provide corrosion resistance; recessed fasteners and rounded edges keep the profile snag-free and comfortable underfoot. The lever is fully concealed within the side plates, and aluminium locking cams feature automatic opening springs—easing the line is sufficient to disengage the jammer. Available in port (L) and starboard (R) versions to ensure correct geometry and intuitive operation on either side of the boat.
Features:
- Double block with 65 mm sheaves
- Integrated jammers for temporary line holding
- Left (port) and right (starboard) versions
- Resin sheaves with composite bushes & side ball bearings
- Hard anodised aluminium side plates; recessed fasteners
- Maintenance-free construction; no lubrication required
- Automatic spring-opening cams; concealed lever design
Applications:
- Primary: sheet leads to cockpit winches on smaller yachts
- Also suitable for halyards, reefing lines, vang/controls, and mast-base line management
- Anywhere lines must be diverted at deck level and held briefly to free a winch
Specifications
| Mount* | Port side mount or Starboard side mount |
| Recommended line - Max Ø (mm) | 12 |
| Sheave Ø (mm) | 65 |
| Sideplate material | Aluminum |
| Sheave material | Plastic |
| SWL (kg) | 800 |
| Weight (g) | 380 |
