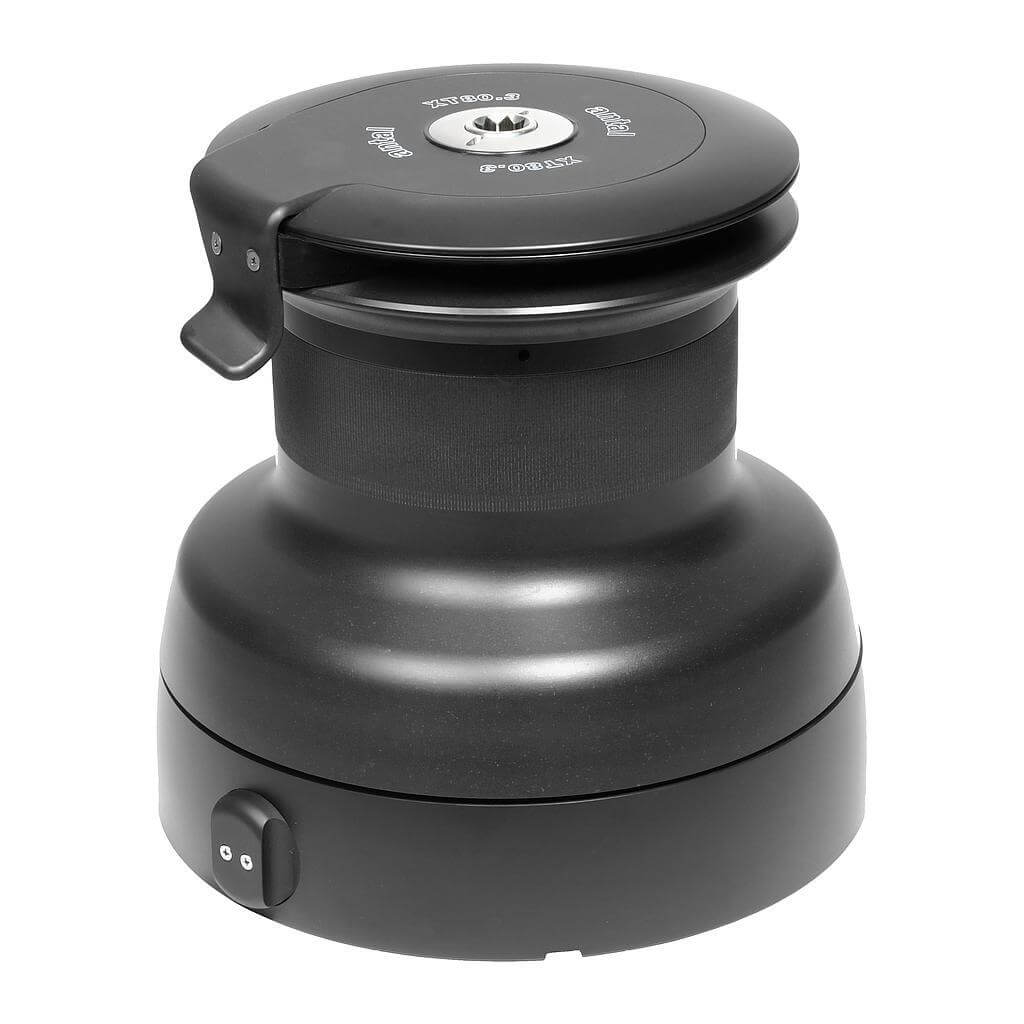

Specifications for Antal 80 3-Speed Self-Tailing Aluminium Winch
| Recommended line - Max Ø (mm) | 22 |
| Recommended line - Min Ø (mm) | 12 |
| Size | 80 |
| Style | Self-Tailing |
| Material | Aluminium |
| Line recovery per rotation - 1st gear (mm) | 147 |
| Line recovery per rotation - 2nd gear (mm) | 53 |
| Line recovery per rotation - 3rd gear (mm) | 20 |
| Base Ø (mm) | 339 |
| Drum Ø (mm) | 210 |
| Height (mm) | 326 |
| Gears (Manual) | 3-Speed |
| Warranty (yrs) | 3 |
| Gear ratio 1 (X : 1) | 4.6 |
| Gear ratio 2 (X : 1) | 12.6 |
| Gear ratio 3 (X : 1) | 34.2 |
| Power ratio 1 (X : 1) | 11 |
| Power ratio 2 (X : 1) | 30 |
| Power ratio 3 (X : 1) | 81.4 |
| Weight (g) | 41600 |
Three Reduced Speed Winch
The push-button on the base starts the first gear (the fastest); second and third gear are automatically selected simply by reversing the rotation of the handle.
HARD BLACK ALUMINIUM (AL): the aluminium drum is hard black anodized and teflon coated, scratch-proof and very hard-wearing, with a differentiated grip (aluminium drums only): minimum friction on the lower part where loads are higher and maximum at the top where loads are minimal: the result is an even grip along the entire drum.
NEW SELF-TAILING XT SYSTEM: fixed upper disk with built in ST arm and self-regulating lower disk on springs. The new self-tailing adapts automatically to a wide range of rope diameters and, if overloading occurs, releases the line to avoid excess force on the ST arm.
Specifications
| Recommended line - Max Ø (mm) | 22 |
| Recommended line - Min Ø (mm) | 12 |
| Size | 80 |
| Style | Self-Tailing |
| Material | Aluminium |
| Line recovery per rotation - 1st gear (mm) | 147 |
| Line recovery per rotation - 2nd gear (mm) | 53 |
| Line recovery per rotation - 3rd gear (mm) | 20 |
| Base Ø (mm) | 339 |
| Drum Ø (mm) | 210 |
| Height (mm) | 326 |
| Gears (Manual) | 3-Speed |
| Warranty (yrs) | 3 |
| Gear ratio 1 (X : 1) | 4.6 |
| Gear ratio 2 (X : 1) | 12.6 |
| Gear ratio 3 (X : 1) | 34.2 |
| Power ratio 1 (X : 1) | 11 |
| Power ratio 2 (X : 1) | 30 |
| Power ratio 3 (X : 1) | 81.4 |
| Weight (g) | 41600 |
