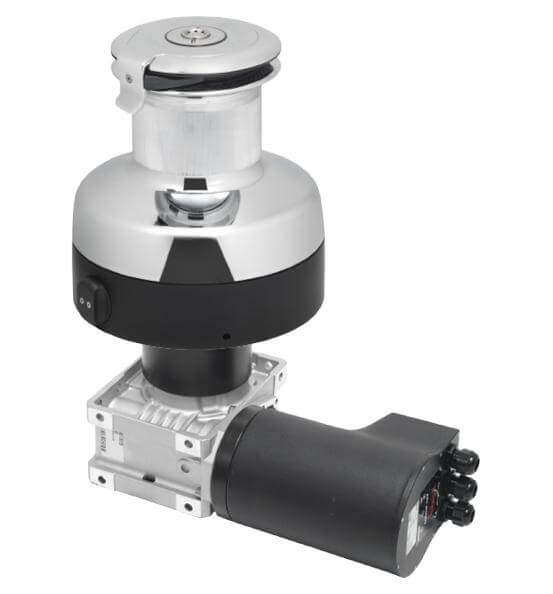

Antal 62 3-Speed Electric (Horizontal) 12V Chromed Bronze Winch (3-Speed Manual)
Specifications for Antal 62 3-Speed Electric (Horizontal) 12V Chromed Bronze Winch (3-Speed Manual)
| Cordage recommandé – Ø Max (mm) | 16 |
| Cordage recommandé – Ø Min (mm) | 8 |
| Skirt Details | Black Aluminium |
| Taille | 62 |
| Style | Horizontal |
| Power (W) | 1000 |
| Epaisseur de pont max (mm) | 80 |
| Voltage (V) | 12 |
| Matériau | Poupée chromée |
| Line recovery per rotation - 1st gear (mm) | 241 |
| Line recovery per rotation - 2nd gear (mm) | 89 |
| Line recovery per rotation - 3rd gear (mm) | 26 |
| Diamètre de l'embase | 224 |
| Ø tourelle (mm) | 120 |
| Hauteur (mm) | 261 |
| Motor Length (mm) | 311 |
| Vitesse (manuelle) | 3 vitesses |
| Garantie (année) | 3 |
| A (mm) | 205 |
| B (mm) | 311 |
| C (mm) | 115 |
| D (mm) | 224 |
| d (mm) | 120 |
| E (mm) | 80 |
| H (mm) | 261 |
| Speed (Motor) | 3 vitesses |
| Vitesse 1 (X : 1) | 1,6 |
| Vitesse 2 (X : 1) | 4.3 |
| Vitesse 3 (X : 1) | 14,9 |
| Puissance 1 (X : 1) | 6,6 |
| Puissance 2 (X : 1) | 17,8 |
| Puissance 3 (X : 1) | 62.1 |
| Pulling load - Max (kg) | 1400 |
| Line speed - 1st gear (m/min) | 36,9 |
| Line speed - 2nd gear (m/min) | 13 |
| Line speed - 3rd gear (m/min) | 4 |
| Poids (g) | 35000 |
Three Reduced Speed Electric Horizontal Winch
Models XT52, XT62 and XT62.3 are powered with a 1000 Watt, 12 or 24 Volt motor. Two switches, one control box and one breaker complete the system.
CHROME (CH): the drum, ST disks and ST arm are entirely chrome-plated. All chromed parts are highly polished, thickly nickel-plated and finally finished in chrome.
NEW SELF-TAILING XT SYSTEM: fixed upper disk with built in ST arm and self-regulating lower disk on springs. The new self-tailing adapts automatically to a wide range of rope diameters and, if overloading occurs, releases the line to avoid excess force on the ST arm.
HORIZONTAL AND VERTICAL MOTORS - All the winches may be equipped with a horizontal motor and gearbox with a worm screw. The largest models may be supplied with a vertical motor which uses a high-efficiency hypocycloid speed reducer. Both solutions have been studied to ensure particularly compact dimensions and maximum silent operation.
MANUAL USE - Simply insert the handle to disconnect the gearbox-motor unit. Greater safety: accidental starting of the motor does not affect the winch, avoiding dangerous turning of the handle. Greater efficiency: the gearbox-motor unit does not turn in manual use, avoiding needless friction.
Spécifications
| Cordage recommandé – Ø Max (mm) | 16 |
| Cordage recommandé – Ø Min (mm) | 8 |
| Skirt Details | Black Aluminium |
| Taille | 62 |
| Style | Horizontal |
| Power (W) | 1000 |
| Epaisseur de pont max (mm) | 80 |
| Voltage (V) | 12 |
| Matériau | Poupée chromée |
| Line recovery per rotation - 1st gear (mm) | 241 |
| Line recovery per rotation - 2nd gear (mm) | 89 |
| Line recovery per rotation - 3rd gear (mm) | 26 |
| Diamètre de l'embase | 224 |
| Ø tourelle (mm) | 120 |
| Hauteur (mm) | 261 |
| Motor Length (mm) | 311 |
| Vitesse (manuelle) | 3 vitesses |
| Garantie (année) | 3 |
| A (mm) | 205 |
| B (mm) | 311 |
| C (mm) | 115 |
| D (mm) | 224 |
| d (mm) | 120 |
| E (mm) | 80 |
| H (mm) | 261 |
| Speed (Motor) | 3 vitesses |
| Vitesse 1 (X : 1) | 1,6 |
| Vitesse 2 (X : 1) | 4.3 |
| Vitesse 3 (X : 1) | 14,9 |
| Puissance 1 (X : 1) | 6,6 |
| Puissance 2 (X : 1) | 17,8 |
| Puissance 3 (X : 1) | 62.1 |
| Pulling load - Max (kg) | 1400 |
| Line speed - 1st gear (m/min) | 36,9 |
| Line speed - 2nd gear (m/min) | 13 |
| Line speed - 3rd gear (m/min) | 4 |
| Poids (g) | 35000 |
