Specifications for Antal Standard Padeye 16mm
| Fixing hole Ø (mm) | 10 |
| Number of fixing holes | 6 |
| Style | Fixed |
| Material | Stainless Steel |
| Material Grade | AISI 316 |
| SWL (kg) | 6500 |
| D (mm) | 110 |
| d (mm) | 16 |
| Weight (g) | 1100 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

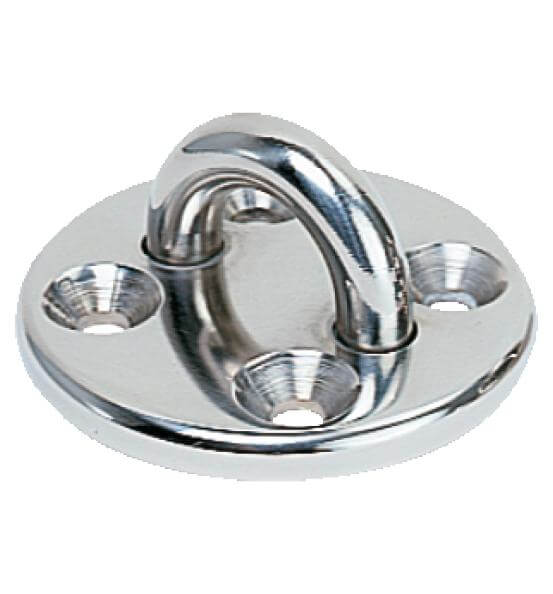

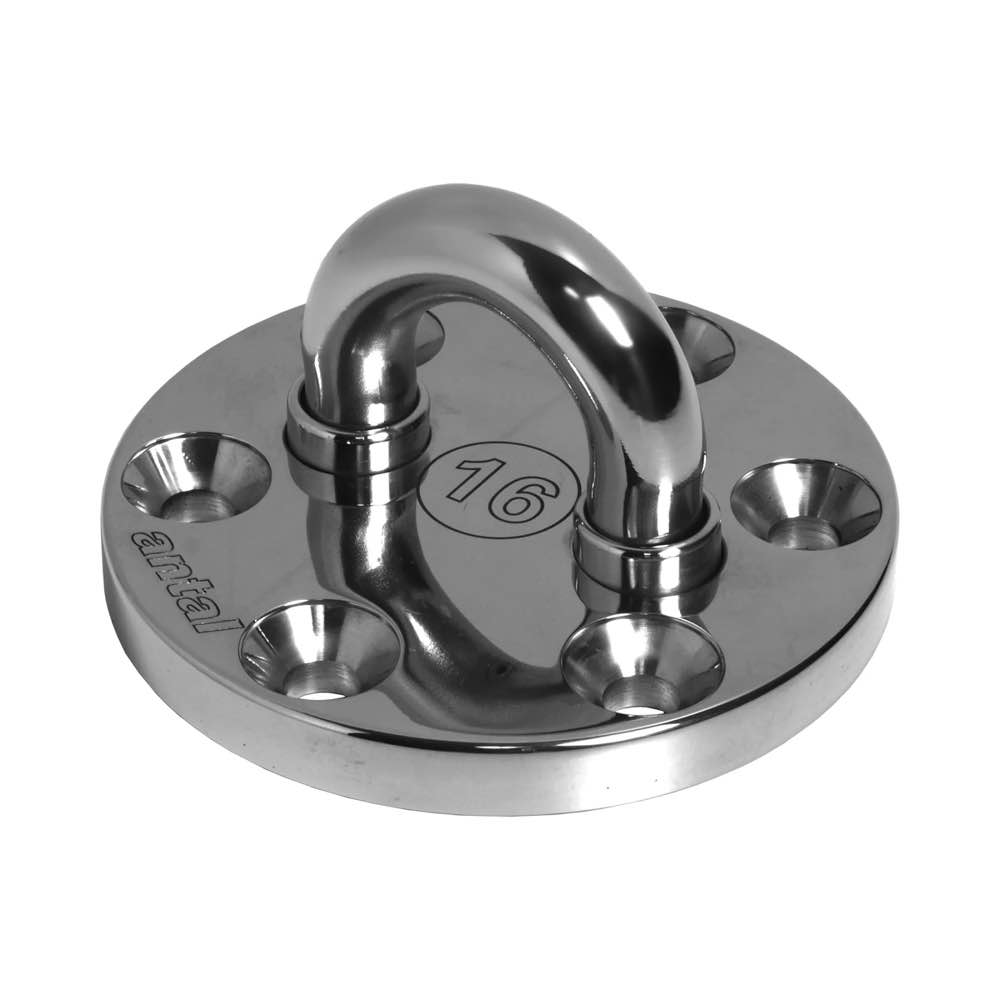

Antal Standard Padeye 16mm
The Antal Standard Padeye 16mm is a heavy-duty deck fitting, precision-manufactured from 316 stainless steel for maximum strength and corrosion resistance. With a Safe Working Load (SWL) of 6,500 kg, it is ideal for critical high-load applications.
Trusted for its D-shaped design, it provides permanent, secure attachment points across a wide range of large yacht installations.
Features:
- 16mm gauge wire padeye, SWL 6,500 kg
- Heavy-duty stainless steel construction
- Maintenance-free, corrosion-resistant
- Classic D-shape design
Applications:
- Extreme load block and rigging attachment points
- Heavy tie-downs and lashing points
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Fixing hole Ø (mm) | 10 |
| Number of fixing holes | 6 |
| Style | Fixed |
| Material | Stainless Steel |
| Material Grade | AISI 316 |
| SWL (kg) | 6500 |
| D (mm) | 110 |
| d (mm) | 16 |
| Weight (g) | 1100 |
