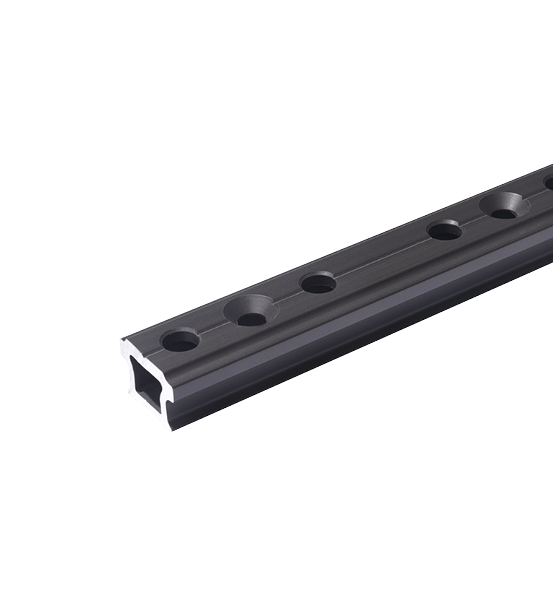

Antal 4Race Track 31x21 (Pin Stop) – Part No. 4520
The Antal 4Race Track 31x21 (Pin Stop) is a robust traveller track designed for performance and cruising yachts in the 33–36 ft range. With a strong 31x21mm profile, it delivers the load capacity and durability required for mid-sized yachts, while maintaining a low-profile deck footprint.
Constructed from hard anodised aluminium, the track is pre-drilled with 50mm spaced holes to support Antal’s mechanical pin stop system. It is designed for use with the free-running 4Race Traveller Car (Part No. 4110), with positioning managed via the Pin Stop (Part No. 4291) and End Stops (Part No. 4271B).
This configuration offers a secure and repeatable solution for mainsheet traveller control, particularly suitable for applications where simplicity, reliability, and mechanical precision are essential.
Key Features:
- Track profile: 31x21mm
- Recommended for boats from 33–36 ft
- Pre-drilled pin stop holes at 50mm intervals
- For use with Traveller Car 4110
- Compatible with Pin Stop 4291 and End Stop 4271B
- Hard anodised aluminium for strength and corrosion resistance
- Ideal for mainsheet traveller systems on performance yachts
Specifications
| Fixing hole Ø (mm) | 8 |
| Fixing hole spacing (mm) | 100 |
