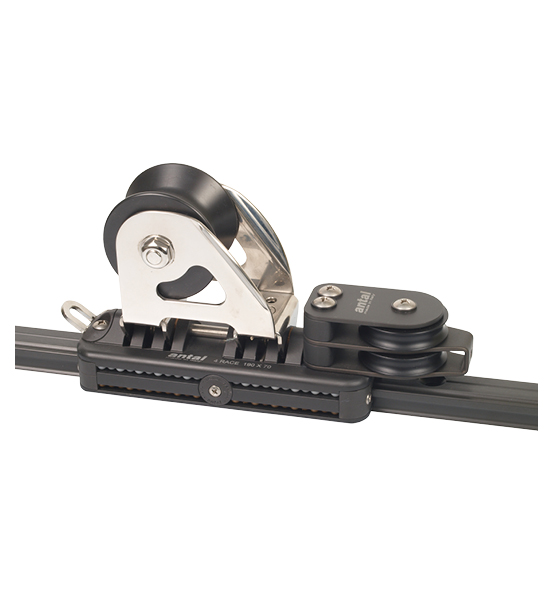

Antal 4Race 190 Genoa Car – 31×21, 4:1 Control
The Antal 4Race 190 Genoa Car – 4:1 Control is the high-purchase option in the largest size of the 4Race genoa car series. Designed to run on the 31×21 mm 4Race track (Antal ref: 4510), it offers the strength and fine adjustment capability needed for yachts carrying large genoas under very high loads.
Built from hard black anodised aluminium with stainless steel side plates, the car runs on four rows of Torlon® and Delrin® ball bearings, ensuring smooth, low-friction travel even when sheet loads are at their maximum. With a Safe Working Load (SWL) of 1900 kg and a large 75 mm main sheet sheave, it is engineered for dependable performance on larger yachts.
This version is configured for a 4:1 control system, with a simple becket at one end and twin 45 mm control sheaves at the other end. This layout provides a compact and efficient purchase arrangement, significantly reducing trimming effort and allowing precise adjustments of genoa lead positions.
Key Features:
- Designed for yachts using the 31×21 mm 4Race track (ref: 4510)
- SWL 1900 kg for heavy-load applications
- Four rows of Torlon® and Delrin® ball bearings for smooth, reliable travel
- 4:1 control system with becket and twin 45 mm control sheaves
- 75 mm main sheet sheave for efficient genoa sheet handling
- Hard anodised aluminium body with stainless steel side plates
- Fully serviceable design for long-term durability
The Antal 4Race 190 Genoa Car – 31×21, 4:1 Control delivers maximum purchase and fine-tune control, making it the top choice for larger yachts demanding smooth, reliable, and precise genoa trimming.
Specifications
| Width (mm) | 70 |
| Length (mm) | 190 |
| Total height (mm) | 146 |
| Total length (mm) | 249 |
| Sheave Ø (mm) | 75 |
| Line entry height (mm) | 78 |
| SWL (kg) | 1900 |
