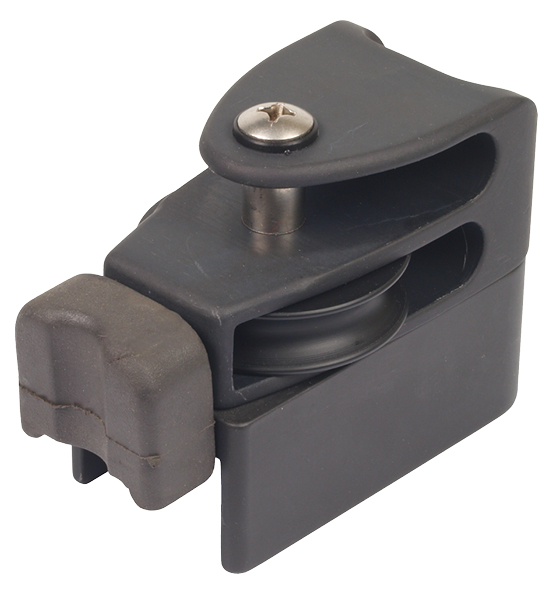

Antal 4Race 110–190 End Control – 2:1 Purchase
The Antal 4Race 110–190 End Control – 2:1 Purchase is designed for use on the 31x21mm 4Race traveller track with any of the 4Race 110, 150, or 190 traveller cars in a 2:1 control line configuration.
It features a single high-load sheave with an integrated becket, allowing the control line to be rigged for mechanical advantage while keeping the system compact and efficient. The becket provides a clean dead-end for the control line, while the sheave ensures smooth, low-friction operation under load.
This end control is built from hard anodised aluminium for maximum strength and corrosion resistance, with a compact profile to minimise deck clutter. It is compatible with all three cam cleat options for the 31x21 track — the 4410 (3-position) for full adjustment flexibility, the 4420 (fixed) for 4Race 110 cars, and the 4430 (fixed) for 4Race 150–190 cars.
Key Features:
- For use with Antal 31x21mm 4Race track
- Compatible with 4Race 110, 150, and 190 traveller cars
- Single sheave with integrated becket for 2:1 purchase systems
- Works with cam cleats 4410 (3-position), 4420 (fixed 110), or 4430 (fixed 150–190)
- Hard anodised aluminium construction for strength and corrosion resistance
- Compact design for minimal deck space usage
Specifications
| Width (mm) | 45 |
| Fixing hole Ø (mm) | 6 |
| Number of fixing holes | 3 |
| Length (mm) | 76 |
| Sheave Ø (mm) | 45 |
| Height (mm) | 63 |
| Weight (g) | 260 |
