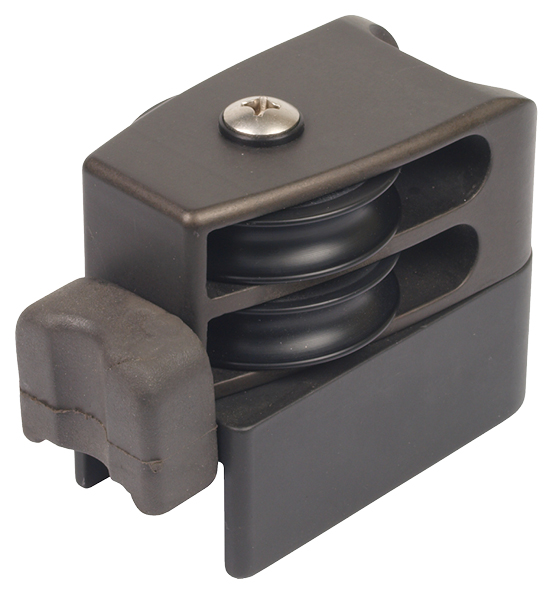

Antal 4Race 110–190 End Control – Double Sheave (Part No. 4274)
The Antal 4Race 110–190 End Control – Double Sheave is designed for the 31x21mm 4Race traveller track, working with any of the 4Race 110, 150, or 190 traveller cars to create a 3:1 purchase system for smooth and precise traveller control.
It features two high-load sheaves to allow the control line to be reeved for maximum mechanical advantage, reducing effort when adjusting the traveller under load. This makes it ideal for high-performance yachts where fine trimming capability is essential.
Constructed from hard anodised aluminium for exceptional strength and corrosion resistance, the end control is compatible with all three cam cleat options for the 31x21 track — the 4410 (3-position) for maximum lead adjustment, the 4420 (fixed) for 4Race 110 cars, and the 4430 (fixed) for 4Race 150–190 cars.
Key Features:
- Fits Antal 31x21mm 4Race track
- Compatible with 4Race 110, 150, and 190 traveller cars
- Two high-load sheaves for 3:1 purchase systems
- Works with cam cleats 4410 (3-position), 4420 (fixed 110), or 4430 (fixed 150–190)
- Hard anodised aluminium body for strength and corrosion resistance
- Efficient, compact design for optimal deck layouts
Specifications
| Width (mm) | 45 |
| Fixing hole Ø (mm) | 6 |
| Number of fixing holes | 3 |
| Length (mm) | 76 |
| Sheave Ø (mm) | 45 |
| Height (mm) | 63 |
| Weight (g) | 280 |
