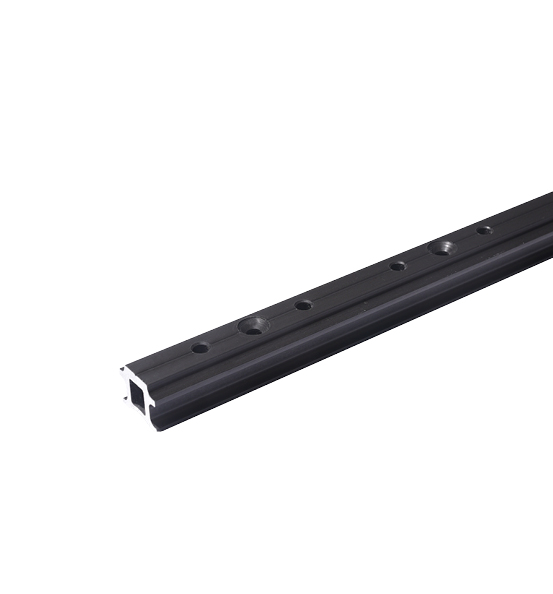

Antal 4Race Track 26x20 (Pin Stop) – Part No. 601.221
The Antal 4Race 26x20 Track (Pin Stop) is a precision-engineered traveller track designed for demanding cruising and racing applications. Manufactured from hard black anodised aluminium, this track features a low-profile 26x20mm cross-section and is pre-drilled to accept Antal pin stop travellers and end fittings.
Ideal for mainsheet and headsail traveller systems, the 4Race track offers a clean, lightweight solution with excellent structural integrity. The pin stop version provides positive mechanical location of the traveller using pre-drilled holes spaced at 50mm intervals, ensuring secure positioning even under high loads.
Key Features:
- Designed for use with Antal pin stop traveller systems
- 26x20mm low-profile section for minimal deck intrusion
- Pre-drilled for 10mm diameter locking pins at 50mm intervals
- Constructed from hard black anodised aluminium for durability and corrosion resistance
- Suitable for high-load applications on performance yachts
Available Lengths:
- 1m, 1.5m, 2m, and 3m as standard
- 4m, 5m, and 6m available on request (please note: shipping restrictions apply for lengths over 3m)
Compatible With:
- Antal Pin Stop Traveller Car 26x20
- Antal End Stops and Control Ends for 26x20 series
- Pin Stop – Part No. 691.421
For applications requiring sliding traveller adjustment without pin stops, the standard version of this track is available under Part No. 601.121.
Specifications
| Fixing hole spacing (mm) | 100 |
| Material | Aluminium |
