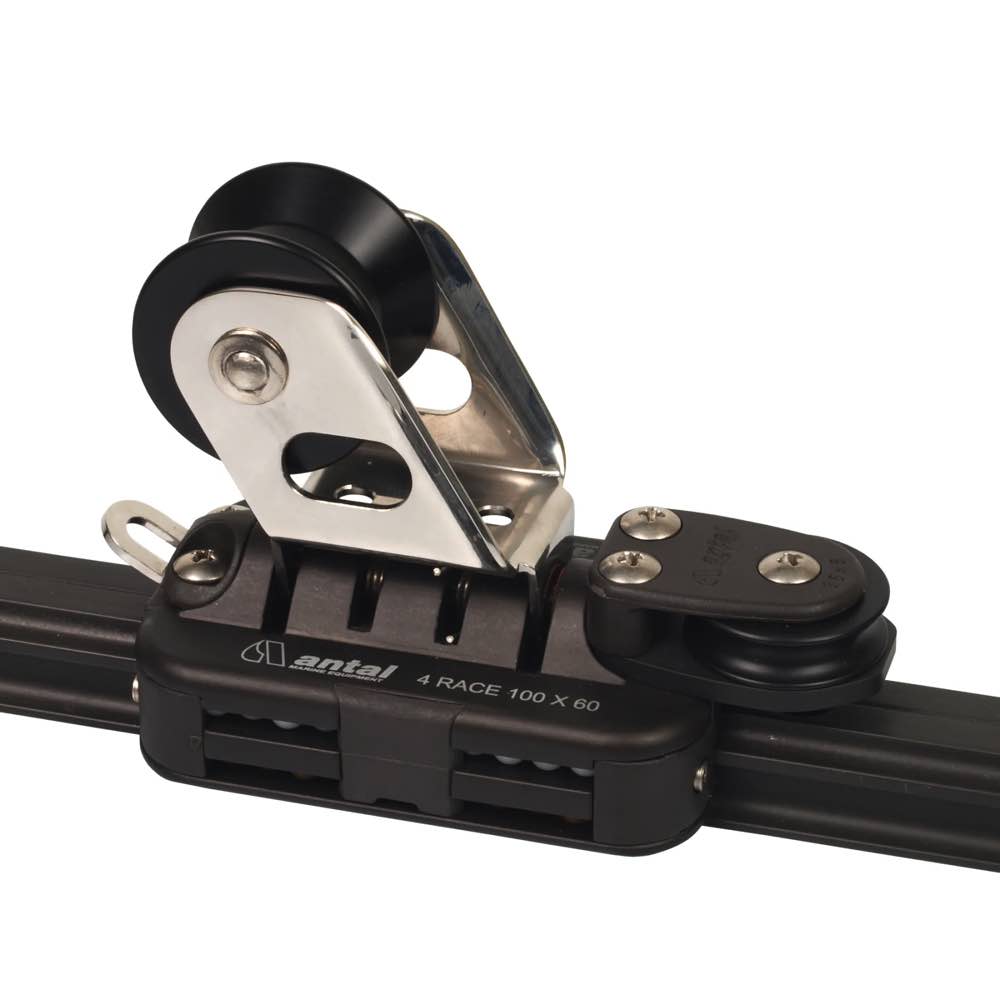

Antal 4Race 100 Genoa Car – 26×20, 2:1 Control
The Antal 4Race 100 Genoa Car – 2:1 Control is designed for smooth and precise genoa-lead management on the 26×20 mm 4Race track (Antal ref: 601.121). Built in hard black anodised aluminium with stainless steel side plates, it runs on four rows of Torlon® and Delrin® ball bearings, delivering low-friction adjustment even under load. With a Safe Working Load (SWL) of 820 kg, it is perfectly suited to smaller performance yachts.
This version is configured for a 2:1 control system, with a becket at one end and a 35 mm control sheave at the other. The arrangement allows the control line to be led through both ends of the car, doubling purchase and reducing the effort required to fine-tune the genoa lead position. A 45 mm sheet sheave provides a smooth and reliable lead for the genoa sheet.
Key Features:
- Suitable for yachts using the 26×20 mm 4Race track (ref: 601.121)
- SWL 820 kg for dependable load handling
- Four rows of Torlon® and Delrin® ball bearings for smooth movement
- 2:1 control system with becket and 35 mm control sheave
- 45 mm sheet sheave for efficient genoa sheet handling
- Hard anodised aluminium body with stainless steel side plates
- Fully serviceable design for long-term reliability
The Antal 4Race 100 Genoa Car – 26×20, 2:1 Control combines strength, precision, and mechanical advantage, making it the ideal choice for smaller yachts that demand smooth and efficient genoa trimming.
Specifications
| Width (mm) | 62 |
| Length (mm) | 98 |
| Total height (mm) | 100 |
| Total length (mm) | 125 |
| Sheave Ø (mm) | 45 |
| Line entry height (mm) | 59 |
| SWL (kg) | 820 |
| Weight (g) | 400 |
