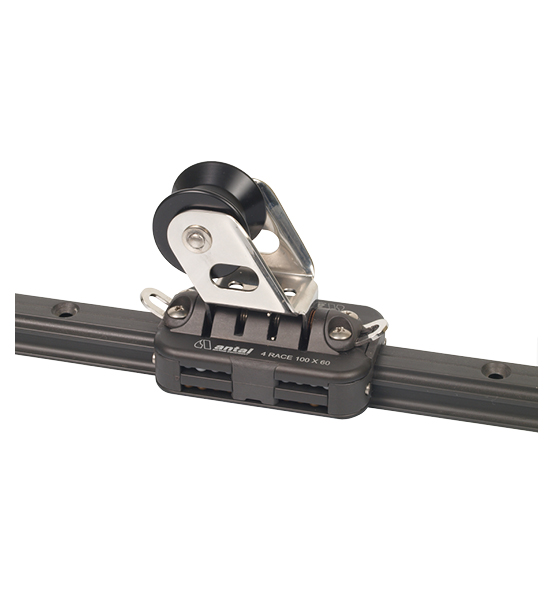

Antal 4Race 100 Genoa Car – 26×20, 1:1 Control
The Antal 4Race 100 Genoa Car delivers smooth, precise genoa-lead control on 26×20 mm 4Race track. Compact yet strong, it is engineered from hard black anodised aluminium with stainless steel side plates and runs on four rows of Torlon® and Delrin® ball bearings for low-friction operation under load. With a Safe Working Load (SWL) of 820 kg, it is ideal for smaller performance yachts.
This version is configured for a 1:1 control system, using a strong becket for simple and reliable adjustment. A 45 mm sheet sheave provides a smooth lead for the genoa sheet, ensuring efficient trimming and consistent performance.
Designed to run on the 26×20 mm 4Race track (Antal ref: 601.121), the car is compatible with the appropriate end stops for a secure and integrated system setup.
Key Features:
- Suitable for yachts using the 26×20 mm 4Race track (ref: 601.121)
- SWL 820 kg for dependable load handling
- Four rows of Torlon® and Delrin® ball bearings for smooth movement
- 1:1 control system with becket and 35 mm control sheave
- 45 mm sheet sheave for efficient genoa sheet handling
- Hard anodised aluminium body with stainless steel side plates
- Fully serviceable design for long-term reliability
The Antal 4Race 100 Genoa Car – 26×20, 1:1 Control combines strength, precision, and low-friction performance, making it the ideal choice for smaller yachts seeking efficient and reliable genoa lead control.
Specifications
| Width (mm) | 62 |
| Length (mm) | 98 |
| Total height (mm) | 100 |
| Sheave Ø (mm) | 45 |
| Line entry height (mm) | 59 |
| SWL (kg) | 820 |
| Weight (g) | 400 |
