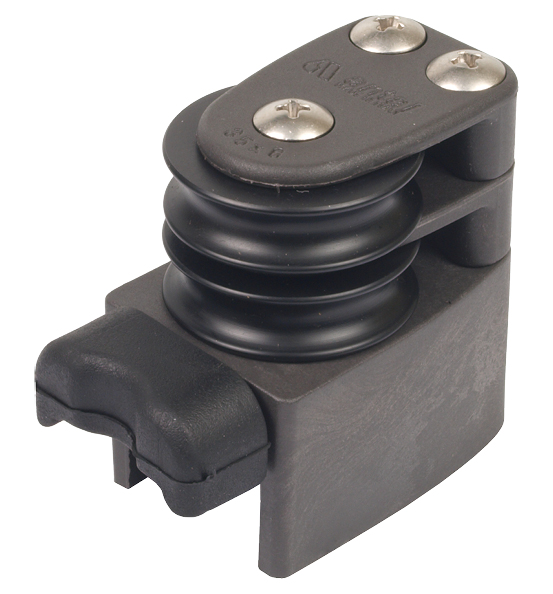

Antal 4Race 100 End Control – Double Sheave (Part No. 4264)
The Antal 4Race 100 End Control – Double Sheave is designed for use with the Antal 4Race 100 (26x20mm) traveller track, providing increased mechanical advantage for fine-tuned control of the traveller car. It features two integrated 35mm sheaves, allowing a 3:1 control line to be rigged efficiently for smoother operation under higher loads.
This fitting is engineered to pair with the Antal 4Race 100 Cam Cleat (Part No. 4266) and the 4Race 100 Traveller Car – 3:1 Control (Part No. 4103). In this configuration, the control line is dead-ended on the car, offering a clean and effective traveller control solution for performance-oriented setups.
Key Features:
- Compatible with Antal 4Race 100 (26x20mm) traveller track
- Integrated dual 35mm sheaves for 3:1 purchase control
- Designed to be used with 4266 Cam Cleat and 4103 Traveller Car
- Control line is dead-ended on the traveller car
- Compact design with low profile and efficient sheave layout
- Constructed from hard anodised aluminium for strength and durability
Specifications
| Width (mm) | 35 |
| Fixing hole Ø (mm) | 5 |
| Number of fixing holes | 3 |
| Length (mm) | 50 |
| Sheave Ø (mm) | 35 |
| Height (mm) | 61 |
| Weight (g) | 100 |
