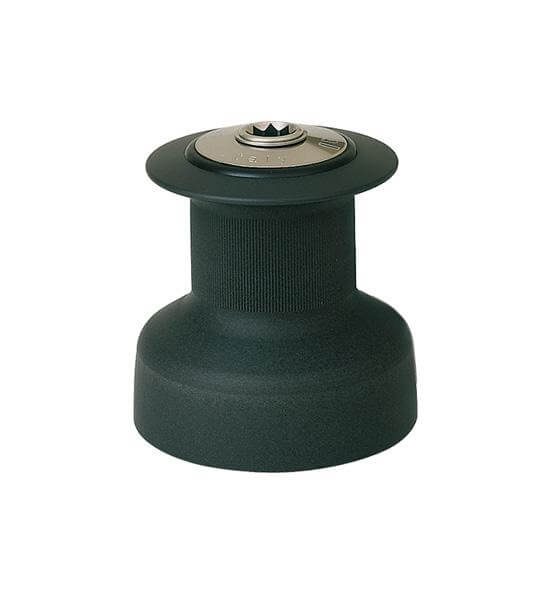

Specifications for Antal 42 2-Speed Plain-Top Aluminium Winch
| Size | 42 |
| Style | Plain-Top |
| Material | Aluminium |
| Line recovery per rotation - 1st gear (mm) | 250 |
| Line recovery per rotation - 2nd gear (mm) | 37 |
| Base Ø (mm) | 144 |
| Drum Ø (mm) | 82 |
| Height (mm) | 145 |
| Gears (Manual) | 2-Speed |
| Warranty (yrs) | 3 |
| Gear ratio 1 (X : 1) | 1 |
| Gear ratio 2 (X : 1) | 7 |
| Power ratio 1 (X : 1) | 6.4 |
| Power ratio 2 (X : 1) | 42.5 |
| Weight (g) | 4100 |
Two Speed Winch: Direct, Reduced
The first speed is direct (one turn of the drum for each turn of the handle); the second speed is reduced: slower but more powerful. Bronze base and gears, AISI 316 stainless steel central rod and roller bearings. Medium size models for boats up to 9-10 m. Available in black anodized aluminium (AL) or chrome-plated (CH) drums
HARD BLACK ALUMINIUM (AL): the aluminium drum is hard black anodized and teflon coated, scratch-proof and very hard-wearing, with a differentiated grip (aluminium drums only): minimum friction on the lower part where loads are higher and maximum at the top where loads are minimal: the result is an even grip along the entire drum.
Standard winches available in two versions, with black aluminum drum and chromed drum. These are non self-tailing winches. Powers range from 5 to 60.
Specifications
| Size | 42 |
| Style | Plain-Top |
| Material | Aluminium |
| Line recovery per rotation - 1st gear (mm) | 250 |
| Line recovery per rotation - 2nd gear (mm) | 37 |
| Base Ø (mm) | 144 |
| Drum Ø (mm) | 82 |
| Height (mm) | 145 |
| Gears (Manual) | 2-Speed |
| Warranty (yrs) | 3 |
| Gear ratio 1 (X : 1) | 1 |
| Gear ratio 2 (X : 1) | 7 |
| Power ratio 1 (X : 1) | 6.4 |
| Power ratio 2 (X : 1) | 42.5 |
| Weight (g) | 4100 |
