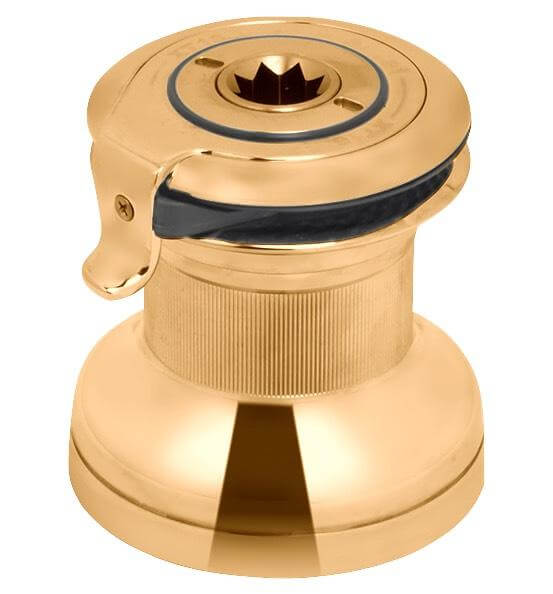

Specifications for Antal 16 2-Speed Self-Tailing Bronze Winch
| Cordage recommandé – Ø Max (mm) | 10 |
| Cordage recommandé – Ø Min (mm) | 6 |
| Taille | 16 |
| Style | Self-Tailing |
| Matériau | Bronze |
| Line recovery per rotation - 1st gear (mm) | 229 |
| Line recovery per rotation - 2nd gear (mm) | 115 |
| Diamètre de l'embase | 112 |
| Ø tourelle (mm) | 71 |
| Hauteur (mm) | 119 |
| Vitesse (manuelle) | 2 vitesses |
| Garantie (année) | 3 |
| Vitesse 1 (X : 1) | 1 |
| Vitesse 2 (X : 1) | 2 |
| Puissance 1 (X : 1) | 7 |
| Puissance 2 (X : 1) | 14 |
| Poids (g) | 3000 |
|
Antal Winch Selection Guide.pdf
|
|
|
|
Antal_XT16.2 CH_Exploded view.pdf
Exploded View of Antal Winch XT16.2_CH
|
|
|
|
Antal_Installation_and_Maintenance_Manual_XT16.2_XT30.2_635809481143518786.pdf
|
|
|
|
Antal_Winches_Catalogue.pdf
|
|
|
|
WP - Winch selection guide.pdf
|
Two Speed Winch: Direct, Reduced
The two smallest models (XT16 and XT30) have a single reduced speed, giving a slow but powerful gear. The handle turns freely the other way. Both available in chrome (CH) or hard black alloy (AL).
POLISHED BRONZE (BN): rather than plating the bronze with chrome, the polished bronze winches use the natural colour of the bronze material to a polished finish.
NEW SELF-TAILING XT SYSTEM: fixed upper disk with built in ST arm and self-regulating lower disk on springs. The new self-tailing adapts automatically to a wide range of rope diameters and, if overloading occurs, releases the line to avoid excess force on the ST arm.
Spécifications
| Cordage recommandé – Ø Max (mm) | 10 |
| Cordage recommandé – Ø Min (mm) | 6 |
| Taille | 16 |
| Style | Self-Tailing |
| Matériau | Bronze |
| Line recovery per rotation - 1st gear (mm) | 229 |
| Line recovery per rotation - 2nd gear (mm) | 115 |
| Diamètre de l'embase | 112 |
| Ø tourelle (mm) | 71 |
| Hauteur (mm) | 119 |
| Vitesse (manuelle) | 2 vitesses |
| Garantie (année) | 3 |
| Vitesse 1 (X : 1) | 1 |
| Vitesse 2 (X : 1) | 2 |
| Puissance 1 (X : 1) | 7 |
| Puissance 2 (X : 1) | 14 |
| Poids (g) | 3000 |
