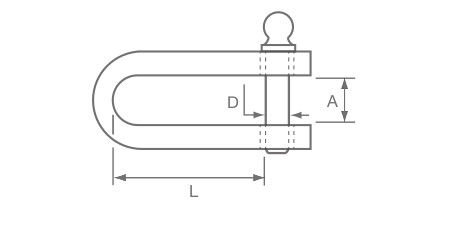

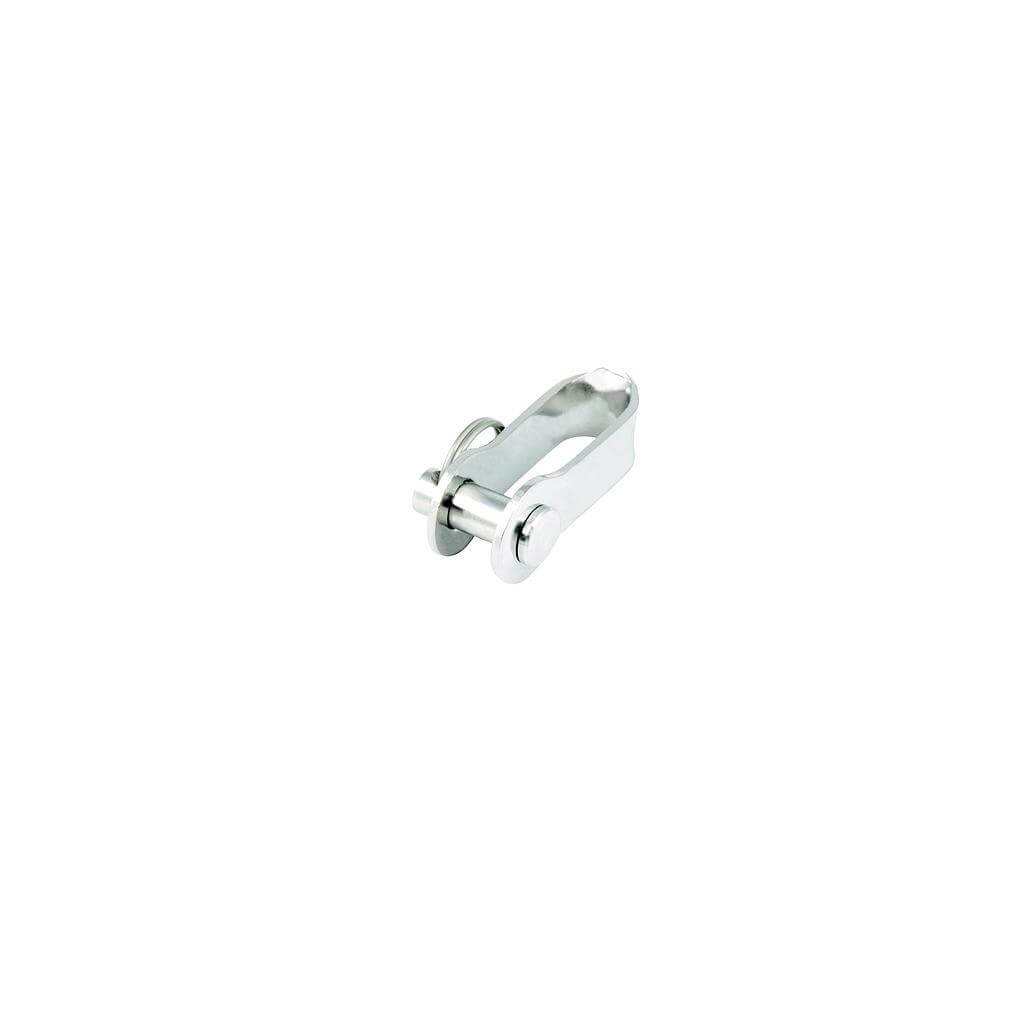

Specifications for Allen Brothers Pressed D Shackle 18mm Long & 7mm Wide
| Material | Stainless Steel |
| Material Grade | AISI 316 |
| Pin Ø (mm) | 5 |
| SWL (kg) | 300 |
| NBL (kg) | 700 |
| A (mm) | 8 |
| D (mm) | 5 |
| L (mm) | 18 |
| W (mm) | 8 |
| Weight (g) | 7 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Material | Stainless Steel |
| Material Grade | AISI 316 |
| Pin Ø (mm) | 5 |
| SWL (kg) | 300 |
| NBL (kg) | 700 |
| A (mm) | 8 |
| D (mm) | 5 |
| L (mm) | 18 |
| W (mm) | 8 |
| Weight (g) | 7 |
