Autopilot drive units
An Autopilot Drive Unit is the mechanical heart of any marine autopilot system, responsible for transferring the commands of the autopilot computer into precise steering movements. Whether you sail offshore short-handed or race competitively, the drive unit ensures reliability, power, and accuracy in steering under varying loads. At Upffront we feature advanced autopilot drive units from leading brands such as Jefa Steering and nke, trusted by sailors worldwide for performance and durability. Read more...
The Role of the Autopilot Drive Unit
In any autopilot system, the drive unit is the component that physically interfaces with the yacht’s steering system. While the control computer makes decisions based on sensor inputs, it is the drive unit that applies torque to the rudder stock or wheel to execute those commands. The reliability of this unit is therefore mission-critical. Failures at sea can lead to steering loss, which is why careful selection, installation, and sizing of an autopilot drive unit are essential.
Types of Autopilot Drive Units
Drive units are typically selected based on the steering system and the displacement of the vessel. The three main configurations include:

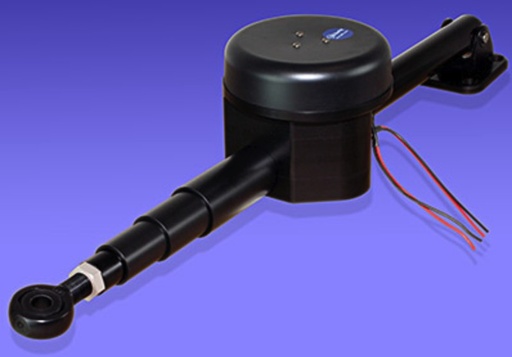

1. Mechanical Linear Drives – These directly actuate the quadrant or tiller arm. They are highly efficient, compact, and often installed beneath deck for protection.
2. Hydraulic Linear Drives – Ideal for larger yachts with hydraulic steering, offering high torque and robust performance under heavy loads.
3. Rotary Drive Units – Designed for wheel steering systems, engaging directly with the helm shaft.
nke Hydraulic Drive Unit
Each type must be carefully matched with the vessel’s displacement, rudder load, and intended usage profile (cruising, ocean passage, or racing).
Jefa Steering Autopilot Drive Units
Jefa Steering is widely regarded as one of the leading engineering specialists in mechanical and autopilot steering solutions. Their mechanical linear autopilot drive units are designed for direct connection to the quadrant or tiller arm, eliminating inefficiencies caused by intermediate linkages. Key features include:
• High Efficiency: Mechanical systems with minimal backlash, ensuring smooth rudder control and reduced power consumption compared to hydraulics.
• Compact Design: Optimised for installation in confined aft compartments, particularly on performance-oriented yachts.
• Durability: Precision-machined components designed to withstand years of offshore sailing without significant wear.
• Low Noise: Quieter operation than equivalent hydraulic units, improving onboard comfort on long passages.
Jefa also provides rotary drive units, typically used for wheel-steered yachts, where the drive motor connects to the wheel shaft. Their modular approach allows sailors to select a drive that matches displacement ranges from smaller 30-footers up to yachts of 70 feet and beyond.
nke, a French manufacturer renowned in offshore and shorthanded racing circuits, offers drive solutions tailored for high-performance sailing. Their linear drive units are engineered to integrate seamlessly with the advanced nke autopilot control systems, ensuring that fast-reacting rudder commands are transmitted accurately.
Key technical advantages include:
• Fast Response Times: Essential for racing yachts, particularly when maintaining course under spinnaker or in heavy sea states.
• Integration with nke Systems: Designed to work optimally with nke’s sensors and processors, creating a closed-loop control system with precise course-holding capabilities.
• Load Sensing: Advanced electronic monitoring helps prevent overload conditions, protecting both the drive and steering system.
• Proven Offshore Reliability: nke drives are widely used in Class 40, IMOCA, and shorthanded offshore fleets, where autopilot reliability is critical to performance and safety.
Key Considerations When Selecting an Autopilot Drive Unit
When specifying a new autopilot drive unit, sailors should evaluate:
• Vessel Displacement: Manufacturers typically rate their drives by displacement ranges. Oversizing is preferable to ensure durability and responsiveness.
• Steering Type: Mechanical or hydraulic systems dictate the choice of drive.
• Duty Cycle: Long-distance cruisers require low power consumption and high durability, whereas racing yachts prioritise fast rudder response and accuracy.
• Installation Constraints: Space in the lazarette or under the cockpit often limits the type of drive that can be installed.
• Redundancy: Offshore sailors may consider carrying a spare drive or installing dual systems for safety.
Jefa direct drive and draglink diagram
Why Invest in High-Quality Drive Units?
The autopilot drive unit is not just another accessory but a vital safety system. On a modern short-handed yacht, it may be at the helm more often than the crew. Offshore sailors often report their autopilot steers 90% of the time, allowing them to focus on navigation, sail trim, or rest. A poorly matched or underpowered drive can lead to course instability, excessive battery consumption, or catastrophic failure under load.
Choosing robust systems from Jefa Steering and nke ensures confidence at sea. Jefa’s mechanical efficiency reduces energy draw, particularly important for yachts relying on renewable power sources such as solar and hydro generators. Meanwhile, nke’s racing heritage ensures drives that can handle high dynamic loads, such as surfing downwind at speed.
Conclusion on Autopilot Drive Unit
An autopilot drive unit forms the mechanical backbone of any self-steering system. Whether you sail short-handed offshore or compete in high-performance races, reliability, efficiency, and integration are paramount. Brands such as Jefa Steering and nke provide proven solutions that combine engineering precision with practical reliability. Selecting the correct drive for your vessel’s steering system and displacement will ensure years of dependable service, reducing helm fatigue and increasing both performance and safety at sea.
