Specifications for MORFRAC morfring Ø 20 mm - Low friction ring
| Total width (mm) | 8 |
| Recommended line - Max Ø (mm) | 5 |
| Inside Ø (mm) | 8 |
| Outside Ø (mm) | 20 |
| Outside line max Ø (mm) | 5 |
| SWL (kg) | 410 |
| NBL (kg) | 820 |
| A (mm) | 20 |
| B (mm) | 8 |
| C (mm) | 8 |
| Weight (g) | 2 |

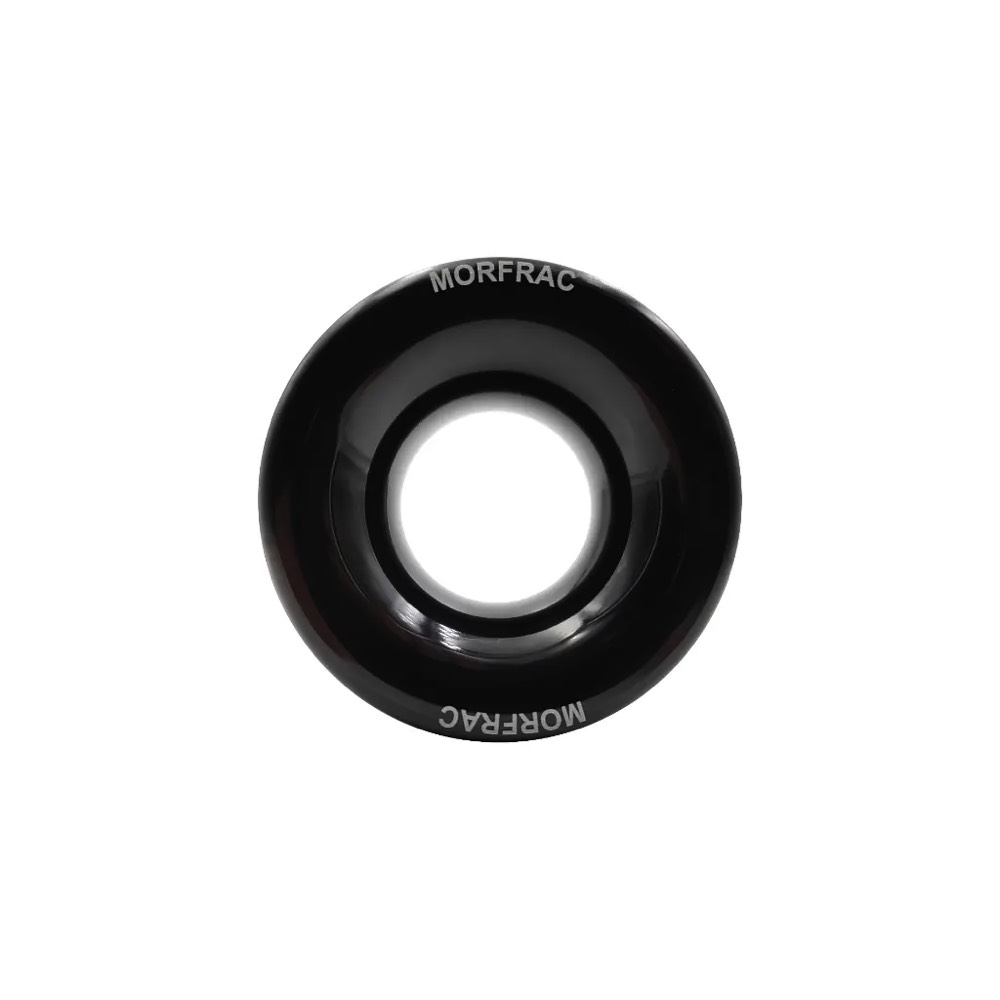

MORFRAC morfring Ø 20 mm – Low Friction Ring
Reliable performance in a refined package. The MORFRAC morfring Ø 20 mm offers a compact, high-strength solution for lightweight rigging systems, built around Morfrac’s signature hard anodising process. This premium finish ensures a glass-smooth surface that significantly reduces line friction and wear, even under load.
Designed for use with smaller control lines and moderate load-bearing applications, it’s an ideal addition to any dinghy, sportsboat, or inboard cascade setup where weight, space, and durability matter.
Key Features:
- Premium Hard Anodised Finish: Delivers ultra-smooth line handling and excellent resistance to abrasion and saltwater corrosion.
- Low Profile and Lightweight: At just 20 mm outer diameter, it fits easily into tight spaces while contributing virtually no weight to your rigging.
- Rope Compatibility: Designed for use with lines up to 5mm in diameter.
- Safe Working Load: Rated to 410 kg, making it ideal for vang systems, tweakers, purchase cascades, or lightweight sheeting solutions.
- Simple and Versatile: A compact, cost-effective alternative to pulley blocks for static and semi-static line deflection or redirection.
- Marine-Grade Durability: Hard anodised aluminium construction ensures long-term resistance to wear, UV, and corrosion.
The morfing Ø 20 mm brings high-end friction performance to small-scale rigging, offering the ultimate in simplicity, reliability, and lightweight design for performance-focused sailors.
Specifications
| Total width (mm) | 8 |
| Recommended line - Max Ø (mm) | 5 |
| Inside Ø (mm) | 8 |
| Outside Ø (mm) | 20 |
| Outside line max Ø (mm) | 5 |
| SWL (kg) | 410 |
| NBL (kg) | 820 |
| A (mm) | 20 |
| B (mm) | 8 |
| C (mm) | 8 |
| Weight (g) | 2 |
