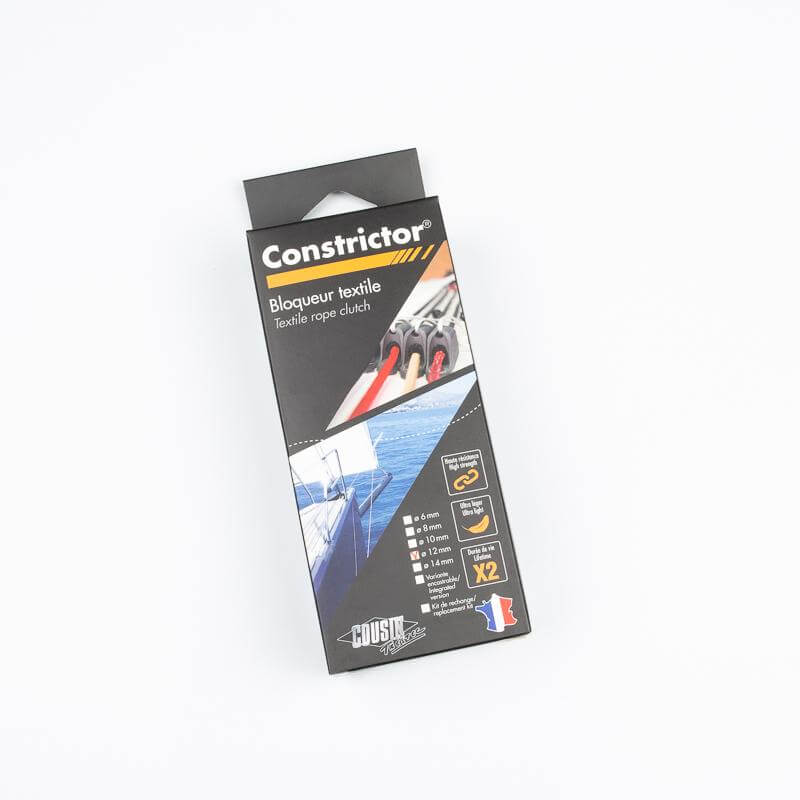

Specifications for Cousin Constrictor® for 12mm rope
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 12 |
| Recommended line - Min Ø (mm) | 10 |
| Boat | |
| Load | |
| SWL (kg) | 1425 |
| NBL (kg) | 2850 |
| Blocks | |
| Dimensions | |
| A (mm) | 58 |
| B (mm) | 126 |
| C (mm) | 36 |
| E (mm) | 70 - 90 |
| F (mm) | 787 |
| Total height (mm) | 58 |
| Total length (mm) | 1210 |
| Total width (mm) | 36 |
| Compatibility | |
| Weight | |
| Weight (g) | 330 |
|
2020 Ronstan Sailboat Hardware Catalogue 80.pdf
|
|
|
|
Installation Guide - Constrictor® Textile Rope Clutches.pdf
|
|
|
How to load your Cousin Constrictor
|
|
|
C-CON_Cousin Constrictor Textile Clutch Drawing 12,14mm_001.jpg
Cousin Constrictor Textile Clutch 12-14mm Technical Drawing
|
|
|
|
C-Cousin Trestec Textile Clutches Anatomy EN_001.pdf
Cousin Trestec Textile Clutches Datasheet
|
|
|
|
C-Cousin Trestec Ronstan Constrictor Flyer_001.pdf
Cousin Trestec Ronstan Constrictor Datsheet
|
|
|
|
C-Cousin Trestec Catalogue 2013 Textile Clutches EN_001.pdf
Cousin Trestec Textile Clutches Catalogue 2013
|
Unlike all conventional clutches the Constrictor® system does not crush the rope between two metal surfaces. Instead, the loaded rope is held securely in a textile sock, itself attached to an anchor base. The rope runs freely through the sock in one direction, but is gripped instantly within the sock when running out in the opposite direction and can achieve a holding power equivalent to the breakstrength of the rope it is retaining. This constrictor effect, patented by COUSIN Trestec, provides increasing holding power as the load increases. The Cousin Constrictor® has 2x the holding power, with zero abrasion and 1/3 of the weight of conventional rope clutches. It can easily be released by hand under load, either locally or the system can also be adapted for remote release.
Specifiche
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 12 |
| Recommended line - Min Ø (mm) | 10 |
| Boat |
|---|
| Load | |
|---|---|
| SWL (kg) | 1425 |
| NBL (kg) | 2850 |
| Blocks |
|---|
| Dimensions | |
|---|---|
| A (mm) | 58 |
| B (mm) | 126 |
| C (mm) | 36 |
| E (mm) | 70 - 90 |
| F (mm) | 787 |
| Total height (mm) | 58 |
| Total length (mm) | 1210 |
| Total width (mm) | 36 |
| Compatibility |
|---|
| Weight | |
|---|---|
| Weight (g) | 330 |
