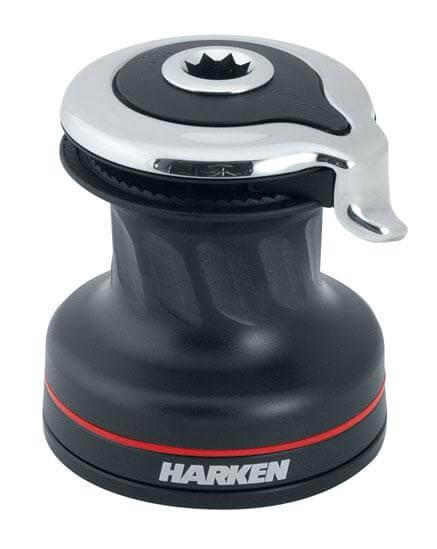

Harken's aluminium winches are designed for sailors who want lightweight, extremely strong winches with plenty of power. The Radial winch drum’s gripping surface is shaped for each winch size and drum material and features diagonal ribs (rather than textured abrasive materials) to maximize gripping power and greatly reduce line wear. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Recommended line - Max Ø (mm) | 10 |
| Recommended line - Min Ø (mm) | 6 |
| Size | 15 |
| Style | Self-Tailing |
| Material | Aluminium |
| Base Ø (mm) | 120 |
| Drum Ø (mm) | 73 |
| Height (mm) | 139 |
| Line entry height (mm) | 58 |
| Gears (Manual) | 1-Speed |
| SWL (kg) | 450 |
| A (mm) | 73 |
| B (mm) | 120 |
| C (mm) | 139 |
| D (mm) | 58 |
| Gear ratio 1 (X : 1) | 2.43 |
| Power ratio 1 (X : 1) | 16.9 |
| Weight (g) | 2100 |
