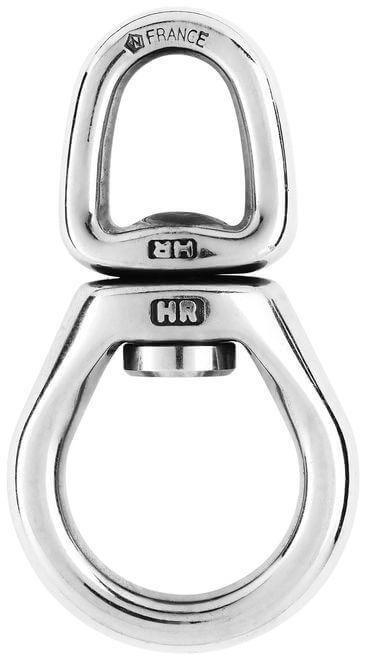

Specifications for Wichard Swivel - With large bail - With ball bearings - Length: 80 mm
| Boat | |
|---|---|
| Load | |
| SWL (kg) | 1600 |
| NBL (kg) | 3000 |
| Dimensions | |
| A (mm) | 26 |
| B (mm) | 14 |
| Longitud total (mm) | 80 |
| Material | |
| Material | Stainless Steel |
| Grado del material | AISI 630 (17-4 / HR) |
| Weight | |
| Peso (g) | 96 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
HR forged swivel (17.4 Ph) without opening end
With ball bearings for an easier rotation
Outstanding working and breaking loads
Applications
Link two pieces which have different rotation
For applications requiring an easier rotation
Do not use for mooring applications
