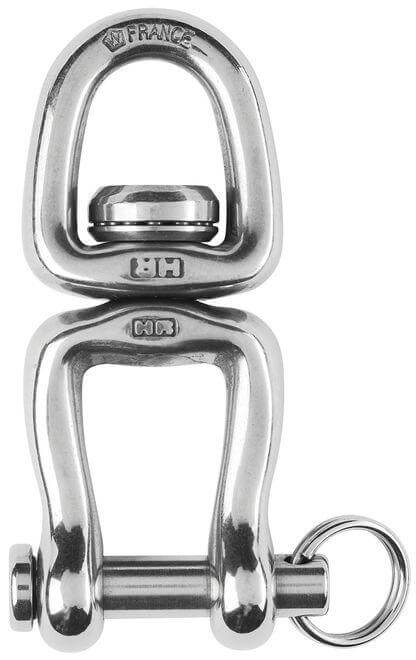

Specifications for Wichard Swivel - With clevis pin - Length: 105 mm
| Boat | |
|---|---|
| Load | |
| SWL (kg) | 3200 |
| NBL (kg) | 6000 |
| Dimensions | |
| A (mm) | 19 |
| B (mm) | 31 |
| C (mm) | 18 |
| D (mm) | 18 |
| Ø del pasador (mm) | 18 |
| Longitud total (mm) | 105 |
| Material | |
| Material | Stainless Steel |
| Grado del material | AISI 630 (17-4 / HR) |
| Weight | |
| Peso (g) | 280 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
HR forged swivel (17.4 Ph) with only one opening side and one eye
Outstanding working and breaking loads
Applications
Link two pieces which have different rotation
Do not use for mooring applications
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Especificaciones
| Boat |
|---|
| Load | |
|---|---|
| SWL (kg) | 3200 |
| NBL (kg) | 6000 |
| Dimensions | |
|---|---|
| A (mm) | 19 |
| B (mm) | 31 |
| C (mm) | 18 |
| D (mm) | 18 |
| Ø del pasador (mm) | 18 |
| Longitud total (mm) | 105 |
| Material | |
|---|---|
| Material | Stainless Steel |
| Grado del material | AISI 630 (17-4 / HR) |
| Weight | |
|---|---|
| Peso (g) | 280 |
