Specifications for Wichard Speedlink Trigger Snap Shackle - SWL 4.3T
| Boat | |
|---|---|
| Estilo | Swivel Bail (Small) |
| Load | |
| SWL (kg) | 4300 |
| NBL (kg) | 8700 |
| Dimensions | |
| A (mm) | 25 |
| B (mm) | 26 |
| Longitud total (mm) | 134 |
| Material | |
| Material | Stainless Steel |
| Grado del material | AISI 630 (17-4 / HR) |
| Compatibility | |
| Tipo de asa | Swivel universal eye |
| Weight | |
| Peso (g) | 326 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

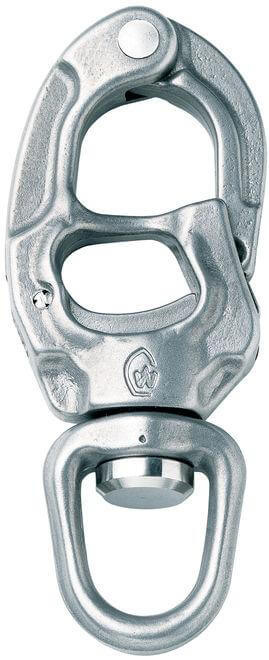

Wichard's Speedlink trigger snap shackle swivel and trigger release mechanism to be used with a release fid.
This range of shackles is producted with High Resistance (HR) grade stainless steel, a corrosion resistant hardened material favoured for marine environments.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Especificaciones
| Boat | |
|---|---|
| Estilo | Swivel Bail (Small) |
| Load | |
|---|---|
| SWL (kg) | 4300 |
| NBL (kg) | 8700 |
| Dimensions | |
|---|---|
| A (mm) | 25 |
| B (mm) | 26 |
| Longitud total (mm) | 134 |
| Material | |
|---|---|
| Material | Stainless Steel |
| Grado del material | AISI 630 (17-4 / HR) |
| Compatibility | |
|---|---|
| Tipo de asa | Swivel universal eye |
| Weight | |
|---|---|
| Peso (g) | 326 |
