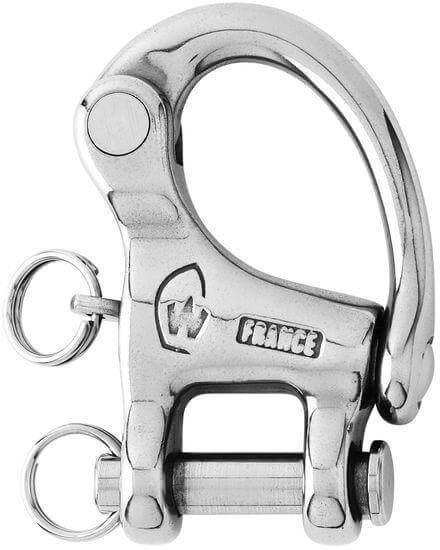

Specifications for Wichard HR snap shackle with clevis pin - Length: 70 mm
| Boat | |
|---|---|
| Estilo | Fixed Clevis Bail |
| Load | |
| SWL (kg) | 1280 |
| NBL (kg) | 3850 |
| Dimensions | |
| A (mm) | 21 |
| B (mm) | 11.5 |
| C (mm) | 16 |
| E (mm) | 11.5 |
| Ø del pasador (mm) | 16 |
| Longitud total (mm) | 70 |
| Material | |
| Material | Stainless Steel |
| Grado del material | AISI 630 (17-4 / HR) |
| Weight | |
| Peso (g) | 130 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
HR Forged snap shackle (Grade 17.4 ph stainless steel) with clevis pin
The plunger pin is set captive into the hook and cannot become detached
Excellent working and breaking loads
Easy to open by pulling the plunger pin (possibility to attach a lanyard)
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Especificaciones
| Boat | |
|---|---|
| Estilo | Fixed Clevis Bail |
| Load | |
|---|---|
| SWL (kg) | 1280 |
| NBL (kg) | 3850 |
| Dimensions | |
|---|---|
| A (mm) | 21 |
| B (mm) | 11.5 |
| C (mm) | 16 |
| E (mm) | 11.5 |
| Ø del pasador (mm) | 16 |
| Longitud total (mm) | 70 |
| Material | |
|---|---|
| Material | Stainless Steel |
| Grado del material | AISI 630 (17-4 / HR) |
| Weight | |
|---|---|
| Peso (g) | 130 |
