Specifications for Tylaska T8C Clevis bail snap shackle
| Boat | |
|---|---|
| Eslora de barco recomendada - Máx (ft) | 36 |
| Eslora de barco recomendada - Mín (ft) | 24 |
| Estilo | Swivel Clevis Bail |
| Load | |
| SWL (kg) | 1818 |
| NBL (kg) | 3636 |
| Dimensions | |
| A (mm) | 17.5 |
| B (mm) | 16.7 |
| C (mm) | 24.6 |
| D (mm) | 25.4 |
| E (mm) | 92.1 |
| Material | |
| Material | 17-4PH or Stainless Steel |
| Grado del material | 17-4PH SS |
| Weight | |
| Peso (g) | 116 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

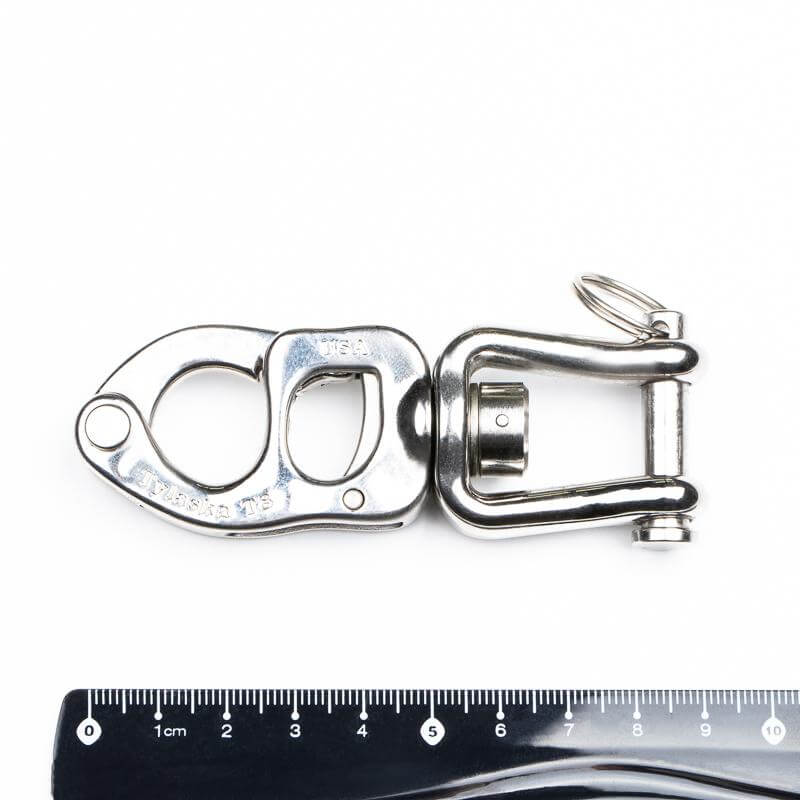

Tylaska T8 Snap Shackles are perfect for applications requiring high strength and low weight. They have a SWL of 1,818kg and weigh only 97g in the standard bail configuration. Ideal for the 24 to 36 foot sailboat. Clevis Bails do not require splicing and provide moveable attachments to rings, deck fittings, furlers, rolling furlers, etc. Ideal for many uses.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Especificaciones
| Boat | |
|---|---|
| Eslora de barco recomendada - Máx (ft) | 36 |
| Eslora de barco recomendada - Mín (ft) | 24 |
| Estilo | Swivel Clevis Bail |
| Load | |
|---|---|
| SWL (kg) | 1818 |
| NBL (kg) | 3636 |
| Dimensions | |
|---|---|
| A (mm) | 17.5 |
| B (mm) | 16.7 |
| C (mm) | 24.6 |
| D (mm) | 25.4 |
| E (mm) | 92.1 |
| Material | |
|---|---|
| Material | 17-4PH o Stainless Steel |
| Grado del material | 17-4PH SS |
| Weight | |
|---|---|
| Peso (g) | 116 |
