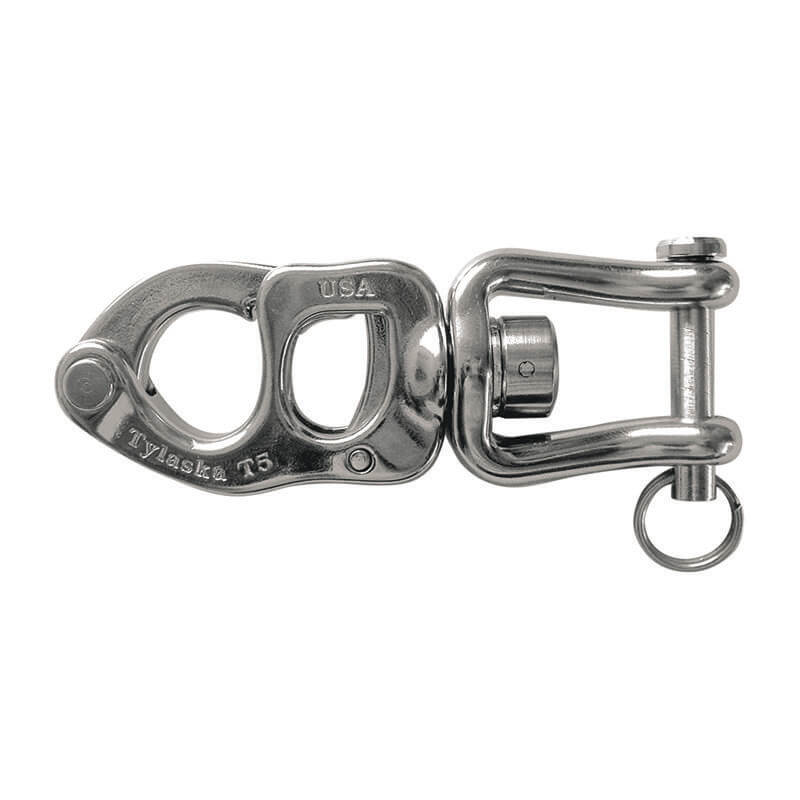

Specifications for Tylaska T5C Clevis bail snap shackle
| Boat | |
|---|---|
| Eslora de barco recomendada - Máx (ft) | 30 |
| Eslora de barco recomendada - Mín (ft) | 20 |
| Estilo | Swivel Clevis Bail |
| Load | |
| SWL (kg) | 1130 |
| NBL (kg) | 2270 |
| Dimensions | |
| A (mm) | 13.5 |
| B (mm) | 14.5 |
| C (mm) | 81 |
| D (mm) | 6 |
| E (mm) | 12.7 |
| Material | |
| Material | Stainless Steel |
| Grado del material | 17-4PH SS |
| Weight | |
| Peso (g) | 77 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Tylaska T5 Snap Shackles are perfect for small boat applications requiring high strength and low weight. They have a SWL of 1,136kg and weigh just 59g in the standard bail configuration. Ideal for J-24s, Mumm 30s and similar boats. Clevis Bails do not require splicing and provide moveable attachments to rings, deck fittings, furlers, rolling furlers, etc. Ideal for many uses.
