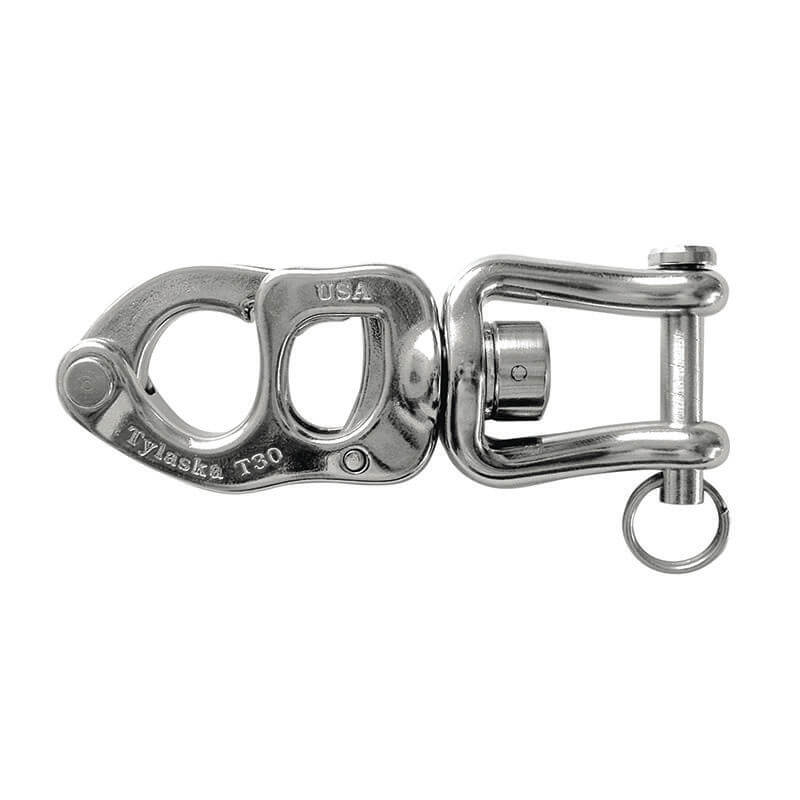

Specifications for Tylaska T30C Clevis bail snap shackle
| Boat | |
|---|---|
| Eslora de barco recomendada - Máx (ft) | 80 |
| Eslora de barco recomendada - Mín (ft) | 60 |
| Estilo | Swivel Clevis Bail |
| Load | |
| SWL (kg) | 4540 |
| NBL (kg) | 13610 |
| Dimensions | |
| A (mm) | 31.2 |
| B (mm) | 34.3 |
| C (mm) | 176 |
| D (mm) | 12 |
| E (mm) | 26.2 |
| Material | |
| Material | Stainless Steel |
| Grado del material | 17-4PH SS |
| Weight | |
| Peso (g) | 885 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
The Tylaska T30 Snap Shackle is designed for large sailboats that need to support strong loads. With a SWL of 6,818kg, this shackle can handle sail loads on the largest of sailboats. A number of around-the-world racing teams utilize the T30. Clevis Bails do not require splicing and provide moveable attachments to rings, deck fittings, furlers, rolling furlers, etc. Ideal for many uses.
