Specifications for Tylaska Dogbone DB8SS Stainless steel
| Ropes | |
|---|---|
| Cabo recomendado - Ø máx (mm) | 4 |
| Boat | |
| Load | |
| SWL (kg) | 1150 |
| NBL (kg) | 2300 |
| Dimensions | |
| A (mm) | 32 |
| B (mm) | 8 |
| C (mm) | 5.6 |
| Weight | |
| Peso (g) | 8.5 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

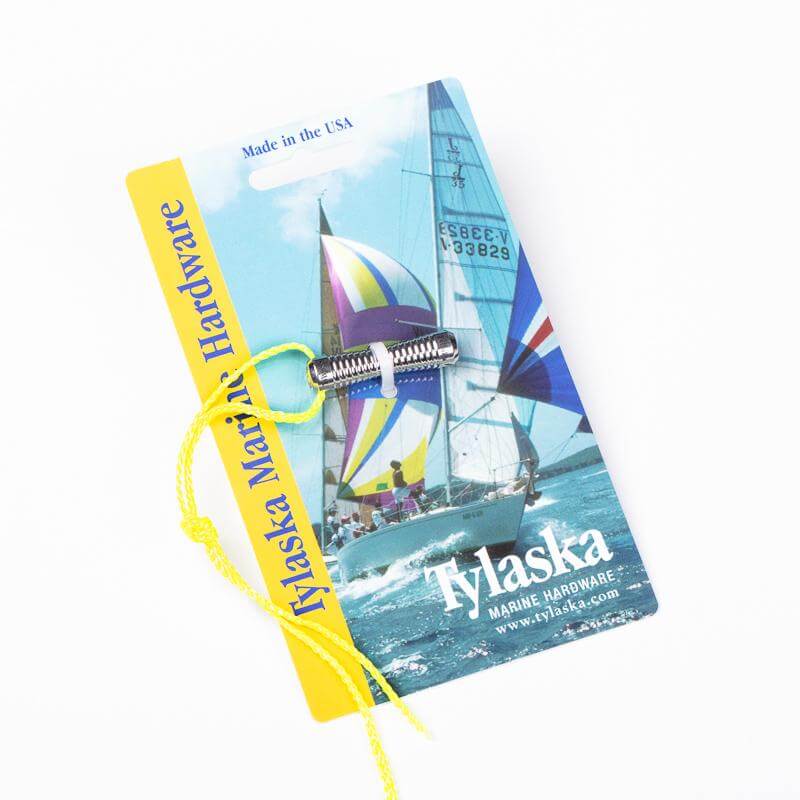

The Tylaska Dogbone DB8SS is made from high strength 17-4 PH Stainless Steel. The dogbone is a very convenient way for attaching the halyard line to the headboard as you can maximize sail height without the added length of a conventional shackle. It also works well for jib and spinsheets, outhauls, the connection of soft loops used for attaching blocks to deck fittings, and numerous other rigging applications. Unlike a knot, the dogbone connection does not jam up under tension and can be quickly attached or detached. The Tylaska Dogbone DB8SS is recommended for use with 4mm lines.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Especificaciones
| Ropes | |
|---|---|
| Cabo recomendado - Ø máx (mm) | 4 |
| Boat |
|---|
| Load | |
|---|---|
| SWL (kg) | 1150 |
| NBL (kg) | 2300 |
| Dimensions | |
|---|---|
| A (mm) | 32 |
| B (mm) | 8 |
| C (mm) | 5.6 |
| Weight | |
|---|---|
| Peso (g) | 8.5 |
