SPINLOCK | XTS Clutch | Servicing
|

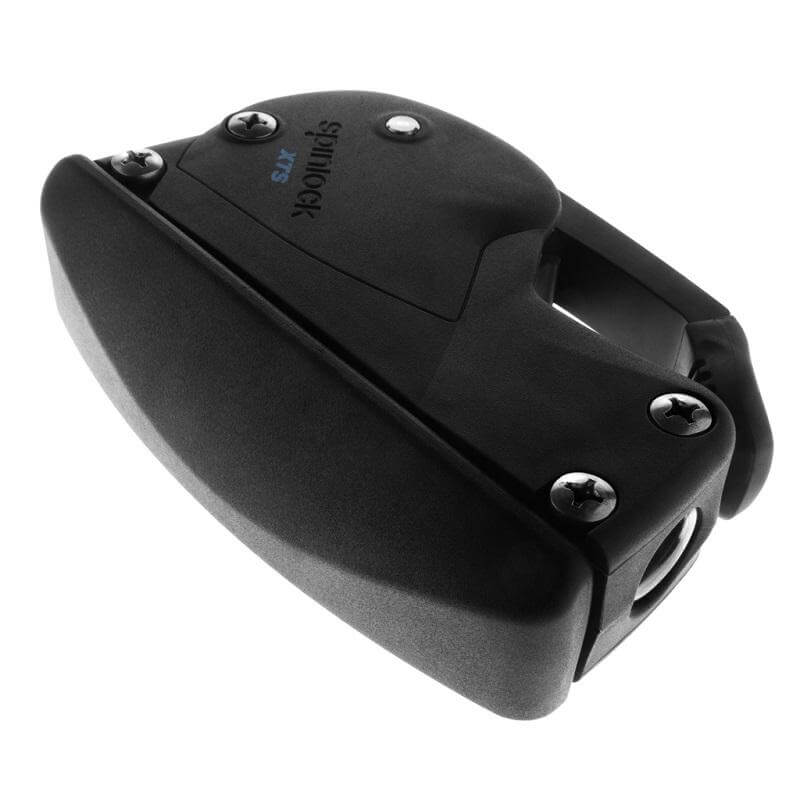

The XTS0814-HP is a port side-mounted version of Spinlock's XTS Clutch is a multi-role clutch with reliable all round performance across a wide rope range. It gives optimised clutching and holding power on 8-14mm lines for mid to high load operation. Features include extruded alloy handle with soft end grip, secure handle locking in open and closed position and easy access to fasteners. Ceramic coated Cam and Base are available for consistent holding & performance on modern lines. The clutch has replaceable parts, iis easy to maintain and is supplied with handle labels. Installation requires 4 x M6 CSK fasteners (supplied).
Especificaciones
| Ropes | |
|---|---|
| Cabo recomendado - Ø máx (mm) | 14 |
| Cabo recomendado - Ø mín (mm) | 8 |
| Boat |
|---|
| Load | |
|---|---|
| SWL (kg) | 1000 |
| Blocks |
|---|
| Dimensions | |
|---|---|
| Altura de entrada del cabo (mm) | 22 |
| Altura total (mm) | 110 |
| Longitud total (mm) | 156 |
| Ancho total (mm) | 39 |
| Undefined | |
|---|---|
| Color* | Black |
| Compatibility | |
|---|---|
| Elementos de fijación de montaje | 2 x M8 CSK Head (not supplied) |
| Weight | |
|---|---|
| Peso (g) | 745 |
| Garantía (años) | 5 |
