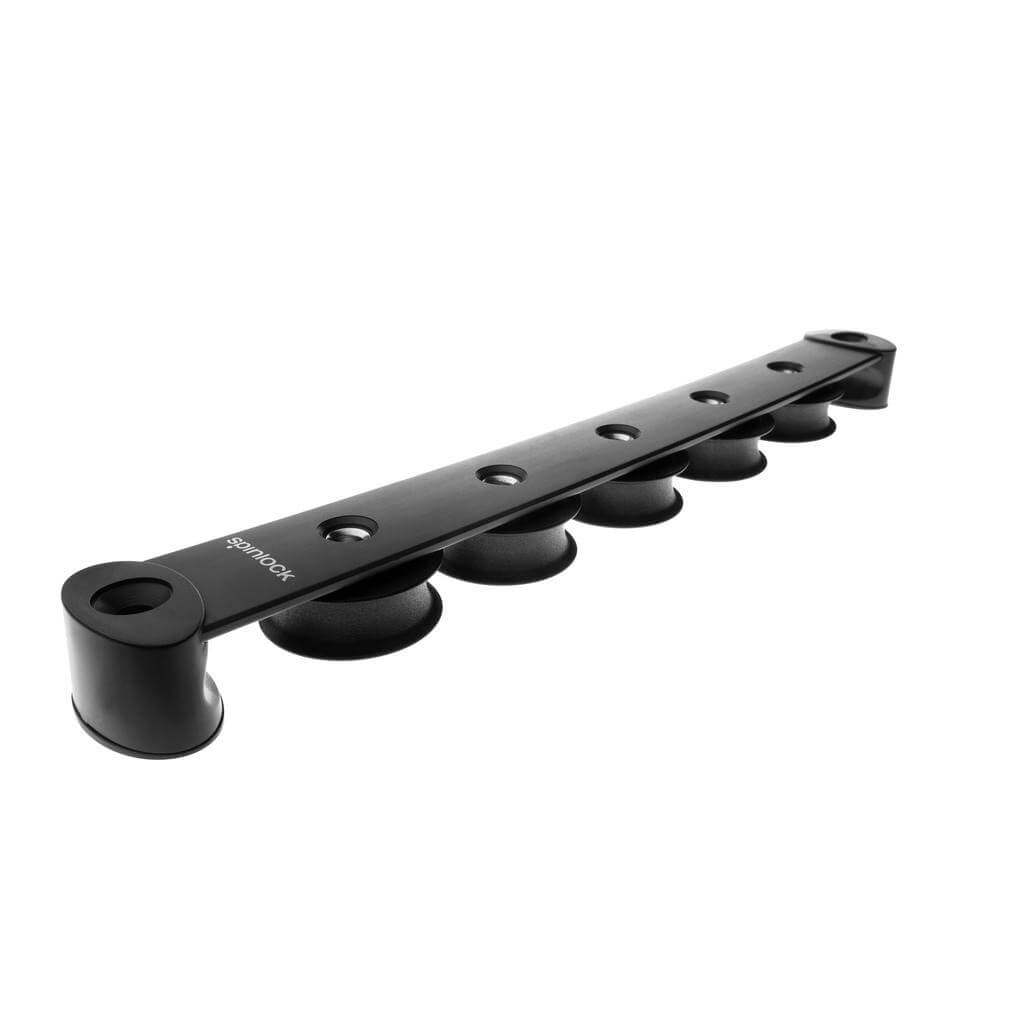

Spinlock T50 – 5 Sheave Deck Organiser (Symmetric and Asymmetric)
The Spinlock T50 5 Sheave Deck Organiser is a high-capacity, high-load organiser designed for performance cruisers and race yachts with complex running rigging systems. Featuring 50 mm sheaves and an efficient bearing surface, it significantly reduces friction, aiding trimming speed and extending halyard and control line life.
The Vari-camber base ensures a natural fit on curved deck surfaces. Integral end fairings allow safe side loading and maintain fair line transitions across changing deck geometry. Available in Symmetric and Asymmetric versions, the Asymmetric model reduces the unit’s footprint and overall weight.
The T50’s stackable design provides flexible installation options in areas with restricted deck space. It is also compatible for stacking on top of the TC50 organiser, enabling yachts to combine medium- and high-load organiser units while maintaining consistent geometry across the system.
Key Features
• Five 50 mm sheaves for high-capacity line handling
• Low-friction bearing surface reduces winch effort
• Integral end fairings maintain safe side loading
• Symmetric and Asymmetric configurations
• Asymmetric variant reduces deck footprint and weight
• Stackable design for increasing capacity
• Compatible for stacking on TC50 organisers
• Vari-camber base conforms to curved deck shapes
• Safe Working Load (SWL): 1000 kg
Applications on Sailing Yachts
Ideal for yachts with extensive adjustment and halyard systems. Typical uses include:
• Multiple halyards for main, jib, staysail, gennaker, and spinnaker
• Full reefing, outhaul, and downhaul systems
• High-load cunningham, vang, and tack line routing
• Multi-line control layouts on performance cruisers and race yachts
• Integrating high-load TC50 modules where required
Especificaciones
| Ropes | |
|---|---|
| Cabo recomendado - Ø máx (mm) | 14 |
| Boat |
|---|
| Load | |
|---|---|
| SWL (kg) | 1000 |
| NBL (kg) | 2000 |
| Blocks | |
|---|---|
| Material de la roldana | Composite |
| Material de las placas laterales | Composite |
| Dimensions | |
|---|---|
| Espaciamiento de orificios de fijación (mm) | 56 |
| Ø de roldana (mm) | 50 |
| Altura total (mm) | 30 |
| Longitud total (mm) | 364 |
| Ancho total (mm) | 50 |
| Compatibility | |
|---|---|
| Opción* | Symmetric o Asymmetric |
| Elementos de fijación de montaje | M8 CSK Head (not supplied) |
| Weight | |
|---|---|
| Peso (g) | 405 |
