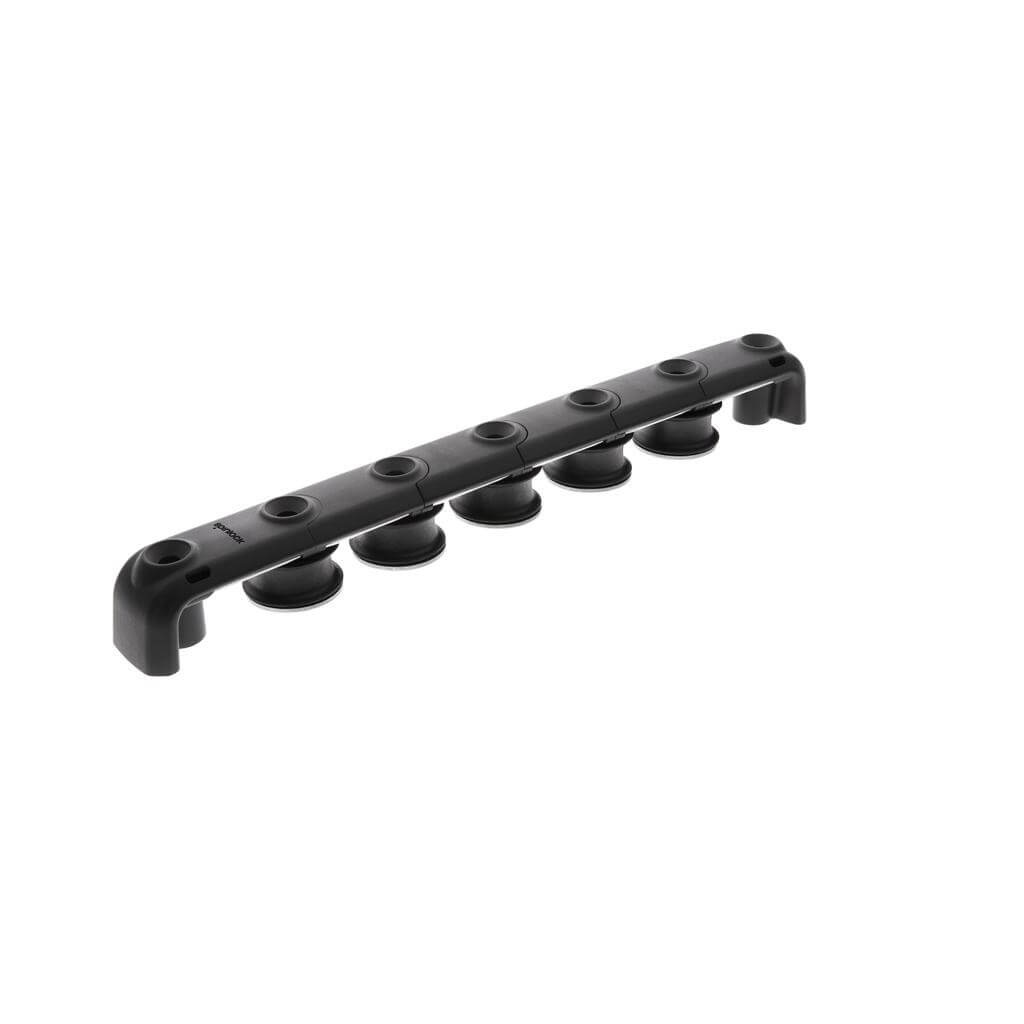

Spinlock T25 – 5 Sheave Organiser (Symmetric and Asymmetric)
The Spinlock T25 5 Sheave Organiser allows sailors to route up to five control lines in a compact, lightweight unit ideal for modern sailing yachts with increasingly complex deck layouts. With 25 mm sheaves, a fibre-reinforced construction, and a stainless steel wear strip, the organiser delivers reliable performance under moderate working loads.
The stainless steel unlinked base conforms naturally to curved deck surfaces, improving deck sealing and making installation straightforward. Symmetric and Asymmetric versions ensure the sheaves align correctly with deck hardware, minimising friction and keeping line handling smooth.
Key Features
• Five 25 mm sheaves in a lightweight, space-efficient organiser
• Fibre-reinforced construction for dependable strength
• Stainless steel wear strip provides rope protection
• Unlinked stainless steel base sits cleanly on curved surfaces
• Available as Symmetric or Asymmetric for optimal fairleads
• Curved body profile enhances line entry alignment
• Safe Working Load (SWL): 400 kg
Applications on Sailing Yachts
Suitable for yachts running multiple halyards and control lines aft, such as:
• Main, jib, gennaker, and spinnaker halyards plus an outhaul
• Combination of two reefing lines, vang, downhaul, and furling controls
• Complex deck layouts on performance cruisers and club racers
• Creating large multi-line banks when used in stacked configurations
Especificaciones
| Ropes | |
|---|---|
| Cabo recomendado - Ø máx (mm) | 10 |
| Boat |
|---|
| Load | |
|---|---|
| SWL (kg) | 400 |
| NBL (kg) | 800 |
| Blocks | |
|---|---|
| Material de la roldana | Composite |
| Material de las placas laterales | Composite |
| Dimensions | |
|---|---|
| Espaciamiento de orificios de fijación (mm) | 32 |
| Ø de roldana (mm) | 25 |
| Altura total (mm) | 24 |
| Longitud total (mm) | 222 |
| Ancho total (mm) | 25 |
| Compatibility | |
|---|---|
| Opción* | Symmetric o Asymmetric |
| Elementos de fijación de montaje | M5 CSK Head (not supplied) |
| Weight | |
|---|---|
| Peso (g) | 126 |
