Specifications for Ronstan Triggersnap shackle, large bail, 123mm
| Boat | |
|---|---|
| Estilo | Swivel Bail (Large) |
| Load | |
| SWL (kg) | 2400 |
| NBL (kg) | 4800 |
| Dimensions | |
| A (mm) | 19 |
| B (mm) | 25 |
| C (mm) | 123 |
| Material | |
| Material | Stainless Steel |
| Grado del material | 15-5PH SS |
| Weight | |
| Peso (g) | 194 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

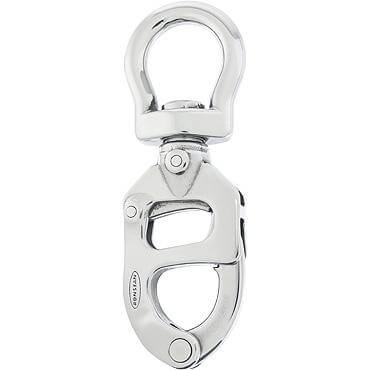

Ronstan Triggersnap shackle, large bail, 123mm
Features:
- High strength-to-weight ratio
- Heat treated, investment cast 15.5PH stainless steel for high strength and corrsion resistance
- Use the aluminium spike to release easily while under load
All Triggersnap™ Shackles are 100% proof load tested.
Batch stamped for increased tracability.
