Materials:
Aluminium alloy
Product information:

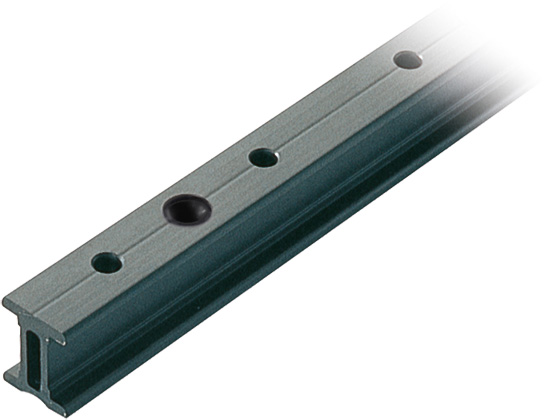

TRACK FASTENINGS - To suit 5mm (3/16") countersunk fasteners at 100mm (3 15/16") centres.
STOP HOLES - 50mm (1 31/32") centres.
Track is supplied with RC7250-INS insulating inserts to eliminate corrosion between track and fasteners
MINIMUM CURVE RADIUS
For 51mm (2") car:
Min horizontal 'A' curve radius = 400mm (15 3/4")
Min horizontal 'B' curve radius = 400mm (15 3/4")
For 86mm (3 3/8") car:
Min horizontal 'A' curve radius = 1200mm (47 1/4")
Min horizontal 'B' curve radius = not suitable
Click to download curved track data (pdf).
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Especificaciones
| Boat |
|---|
| Dimensions | |
|---|---|
| Longitud total (mm) | 996 |
| Ancho total (mm) | 19 |
| Weight | |
|---|---|
| Peso (g) | 830 |
