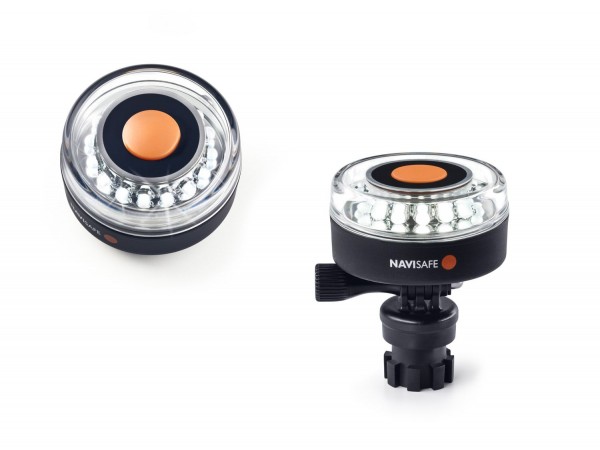

Portable All-round white Navigation light with Navimount base, compatible with Navisafe Navimount system and many GoPro® / Action camera mounts.
The Navilight 360° without the Navimount base can be mounted directly to the 4-piece-pole but also directly to all kind of GoPro® / Action camera mounts.
The Navilight 360° together with the Navimount base can be mounted directly to all Navimount’s – for example to the Navimount Rail / 956 onto the push pulpit or onto the Navimount Horizontal / 952 on the cabin roof.
Examples of usage, based on the Convention on the International Regulations for Preventing Collisions at Sea, commonly called 72 COLREGs.
On a power-driven vessel underway of 12 meters or more in length but less than 50 meters in length:
Sternlight
All-round white light
On a power-driven vessel underway of less than 12 meters in length:
Masthead light
Sternlight
All-round white light
On a power-driven vessel underway of less than 7 meters in length whose maximum speed does not exceed 7 knots:
All-round white light
Rowing / Paddle vessels
All-round white light
Anchored vessels and vessels aground
All-round white light
Modes/approximate burn time:
16 white LED, 360° All-round light, Anchoring light / 15hrs
16 white LED, 360° Flashing light / 85hrs
10 white LED, 225° Masthead light / 24hrs
6 white LED, 135° Sternlight / 32hrs
4 white LED, 360° Cabin light / 72hrs
Especificaciones
| Electrics | |
|---|---|
| Battery type | 3x AAA |
| Visibility (NM) | 2 |
| Water resistance | 20m depth |
| Boat |
|---|
| Dimensions | |
|---|---|
| Height (mm) | 90 |
| Outside Ø (mm) | 68 |
| Weight | |
|---|---|
| Weight (g) | 109 |
