Vertically mounted with 2,5m cable
Included in package:

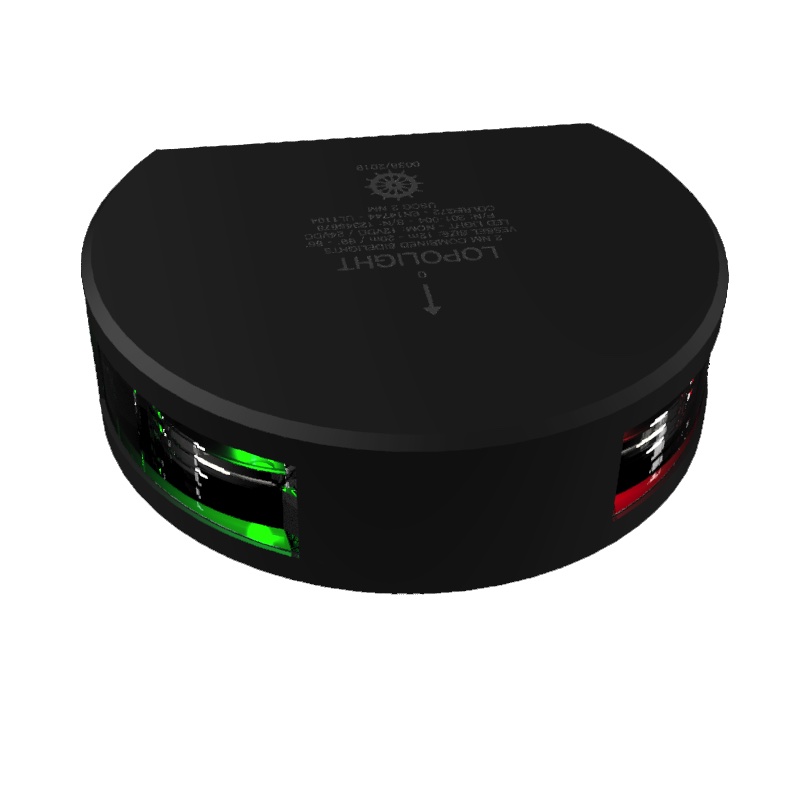

- 1 Navigation light
- precabled with 2.5 meter shielded marine grade cable
- 2 Mounting screws (M6 * 8 mm)
- Installation guide
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Especificaciones
| Electrics | |
|---|---|
| Tensión de funcionamiento (V) | 10-32 |
| Tipo de alimentación | dc. |
| Consumo de corriente (mA @ 12VCC) | 163 |
| Consumo de corriente (mA @ 24VCC) | 90 |
| Potencia (W) | 2.2 |
| Homologado según | COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR |
| Intensidad luminosa (cd) | >5.4 |
| Temperatura de funcionamiento | -25°C to 55°C |
| Visibilidad (NM) | 2 |
| Resistencia al agua | IP68 |
| Boat | |
|---|---|
| Eslora (m) | 12-20M |
| Rigging | |
|---|---|
| Calibre de cable de alimentación Mín | 0.5mm2 AWG22 |
| Material | |
|---|---|
| Material | Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane o Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Undefined | |
|---|---|
| Color* | Black o Silver |
| Compatibility | |
|---|---|
| Conexión | 2.5m cable |
| Weight | |
|---|---|
| Peso (g) | 500 |
| Garantía (años) | 5 year limited warranty |
