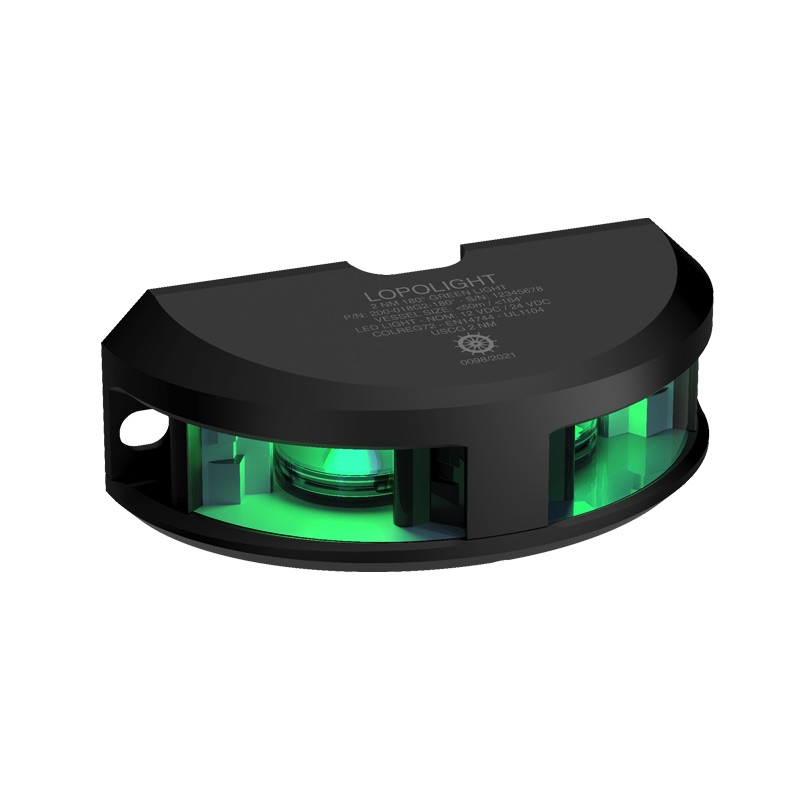

Lopolight 2NM 180° Green Light – Vertical Mount, 20m Cable (Silver or Black Anodised)
[Sector light – For vessels under 20m or specialist applications]
The Lopolight 2NM 180° Green Light with 20-metre cable is designed for installations where extended routing is required, such as tall rigs or complex wiring paths. Emitting a sharp 180° green beam visible to 2 nautical miles, it provides compliant and dependable visibility for vessels under 20 metres or for use in specialist navigation and signalling roles.
This vertical-mount version is built from anodised aluminium and available in Silver or Black finishes, combining durability with a clean, modern profile. Rated IP68, the epoxy-filled electronics are fully sealed against saltwater, UV, and vibration, ensuring reliable performance in harsh marine conditions.
The 20-metre marine-grade cable provides exceptional flexibility for installation on larger vessels or projects with complex cabling needs.
Key Features
- Suitable for vessels under 20 metres or signalling applications
- Emits a 180° green beam, visible to 2NM
- Vertical mount – ideal for mast or superstructure installations
- Available in Silver or Black anodised aluminium housing
- IP68 sealed with epoxy-filled electronics for long-term reliability
- Supplied with 20m marine-grade cable for extended routing
- Low power draw – efficient LED output at 10–32 V
- Fully compliant with COLREG72 and international standards
- Alternative versions available with 0.75m or 6m cable (Silver or Black anodised)
Especificaciones
| Electrics | |
|---|---|
| Tensión de funcionamiento (V) | 10-32 |
| Consumo de corriente (mA @ 12VCC) | 145 |
| Consumo de corriente (mA @ 24VCC) | 60 |
| Homologado según | COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR |
| Intensidad luminosa (cd) | >5.4 |
| Temperatura de funcionamiento | -25°C to 55°C |
| Visibilidad (NM) | 2 |
| Resistencia al agua | IP68 |
| Boat | |
|---|---|
| Eslora (m) | Under 12M o 12-20M o 20-50M |
| Material | |
|---|---|
| Material | Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane o Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Undefined | |
|---|---|
| Color* | Black o Silver |
| Compatibility | |
|---|---|
| Conexión | 20m cable |
| Weight | |
|---|---|
| Peso (g) | 990 |
