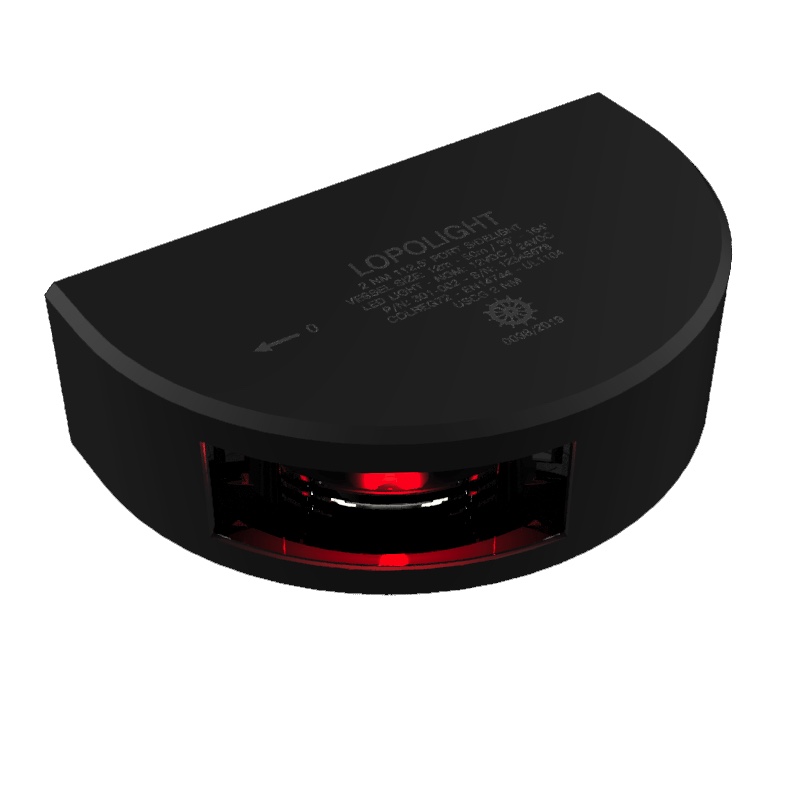

Lopolight 2NM 112.5° Port Sidelight – Vertical Mount, 6m Cable (Silver or Black Anodised)
[For vessels under 20m – LED navigation light]
The Lopolight 2NM Port Sidelight with 6-metre cable is designed for vessels under 20 metres requiring extended wiring runs or taller superstructures. Emitting a precise 112.5° red beam visible to 2 nautical miles, it delivers consistent, compliant portside visibility for safe navigation.
Machined from anodised aluminium, this model is offered in Silver or Black finishes to match vessel aesthetics. The vertical-mount design is compact, making it ideal for installation on hull sides, pulpits, or narrow deck locations. Rated IP68, with epoxy-sealed electronics, the unit is built for long-term resistance to saltwater, vibration, and UV exposure.
The 6-metre marine-grade cable provides installation flexibility for longer routing paths or retrofit projects.
Key Features:
- Suitable for vessels under 20 metres
- 112.5° red beam, visible to 2NM
- Vertical mount – compact and space-efficient
- Available in Silver or Black anodised aluminium housing
- IP68 sealed with epoxy-filled electronics for marine durability
- Supplied with 6m marine-grade cable for extended routing
- Low power draw – ~2 W at 10–32 V
- Fully compliant with COLREG72, EN14744, and USCG standards
- Alternative version available with 2.5m cable connection
Especificaciones
| Brand |
|---|
| Sin categoría | |
|---|---|
| Boat size (m) | Under 12M o 12-20M o 20-50M |
| Colour* | Black o Silver |
| Material | Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane o Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Connection | 6m cable |
| Dimensions (mm) | 92,5 x 28 x 49,7 |
| Operating temperature | -25°C to 55°C |
| Feed wire gauge Min | 0.5mm2 AWG22 |
| Current draw (mA @ 12VDC) | 90 |
| Current draw (mA @ 24VDC) | 50 |
| Approved to | COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR |
| Luminous Intensity (cd) | >5.4 |
| Power supply type | dc. |
| Visibility (NM) | 2 |
| Power (W) | 1.2 |
| Operating voltage (V) | 10-32 |
| Warranty (yrs) | 5 year limited warranty |
| Water resistance | IP68 |
| Weight (g) | 630 |
