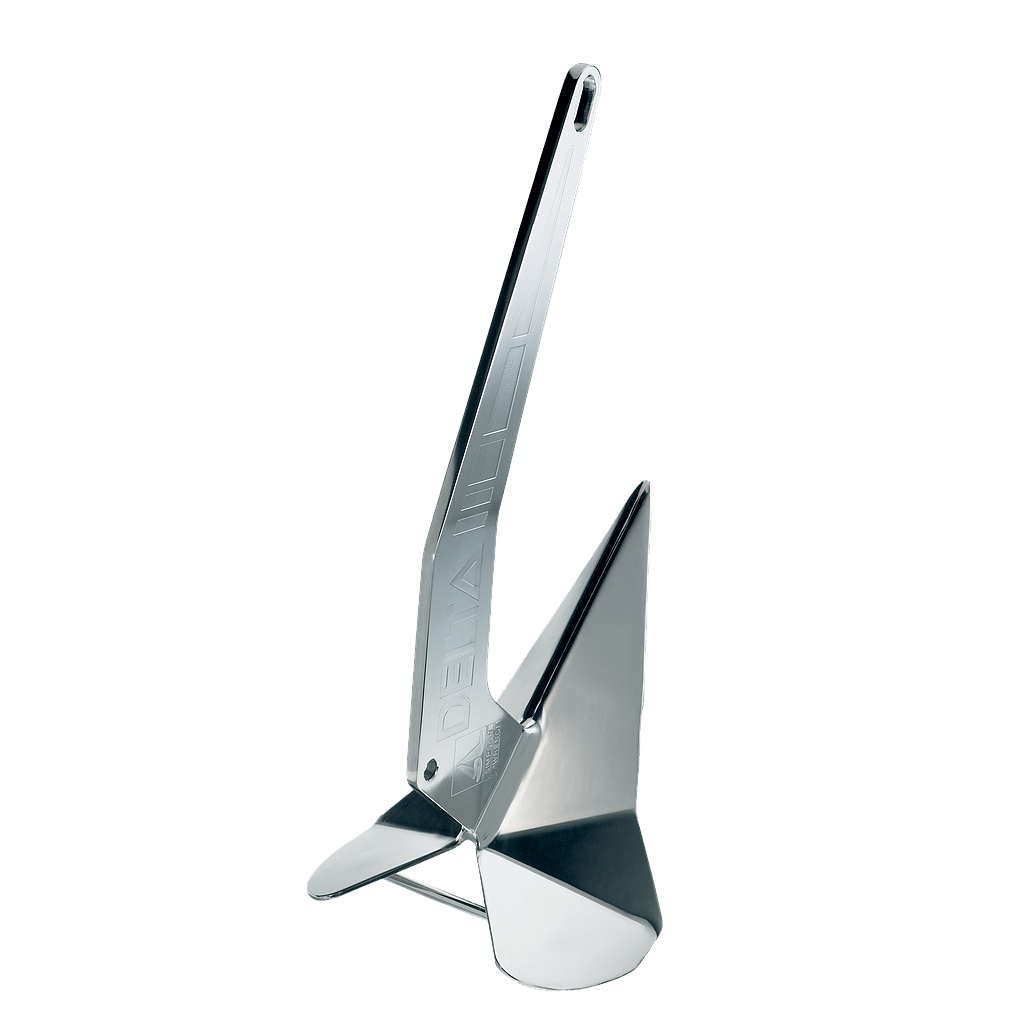

Specifications for Lewmar Delta® ss 40kg/88lbs
| Boat | |
|---|---|
| Eslora de barco recomendada - Máx (ft) | 72 |
| Eslora de barco recomendada - Mín (ft) | 60 |
| Tamaño de cadena recomendado (mm) | 10 |
| Dimensions | |
| A (mm) | 1099 (±22) |
| B (mm) | 489 (±10) |
| C (mm) | 20 |
| D (mm) | 835 (±17) |
| E (mm) | 446 (±9) |
| Material | |
| Material | Stainless Steel |
| Weight | |
| Peso del ancla (kg) | 40 |
| Peso (g) | 40000 |
| Garantía (años) | Lifetime guarantee |
|
40kg epsilon_side_views_PRINT_ROLLBAR_40kg.pdf
Printable fit guide template
|
|
|
|
40kg epsilon_side_views_PRINT_NO-BAR_40kg.pdf
Printable fit guide template
|
|
|
|
how to use the fit guide_0.pdf
|
|
|
|
Lewmar_Catalogue_AMPL_Anchoring.pdf
|
|
|
|
CAD-DeltaRange.pdf
|
Its unique shank profile and ballasted tip make the Delta® anchor self-launching. The low centre of gravity and self-righting geometry ensure that the Delta® anchor will set immediately. Consistent and reliable in performance, the Delta® anchor has Lloyd's Register General Approval of an Anchor Design as a High Holding Power anchor and is specified as the primary anchor used by numerous National Lifeboat organisations. Also available in premium grade Duplex/High Tensile stainless steel.
All Delta® anchors are "guaranteed for life against breakage". Lloyd's Test Certification is available for individual Delta® anchors by arrangement.
**Damage by deformation or bending is not covered by this guarantee.**
• Manufactured from high grade manganese steel or 316 stainless steel
• Self launching
• Lloyd's Register Type Approval
• Guaranteed for life against Breakage
• Lloyd's Test Certification available
Especificaciones
| Boat | |
|---|---|
| Eslora de barco recomendada - Máx (ft) | 72 |
| Eslora de barco recomendada - Mín (ft) | 60 |
| Tamaño de cadena recomendado (mm) | 10 |
| Dimensions | |
|---|---|
| A (mm) | 1099 (±22) |
| B (mm) | 489 (±10) |
| C (mm) | 20 |
| D (mm) | 835 (±17) |
| E (mm) | 446 (±9) |
| Material | |
|---|---|
| Material | Stainless Steel |
| Weight | |
|---|---|
| Peso del ancla (kg) | 40 |
| Peso (g) | 40000 |
| Garantía (años) | Lifetime guarantee |
